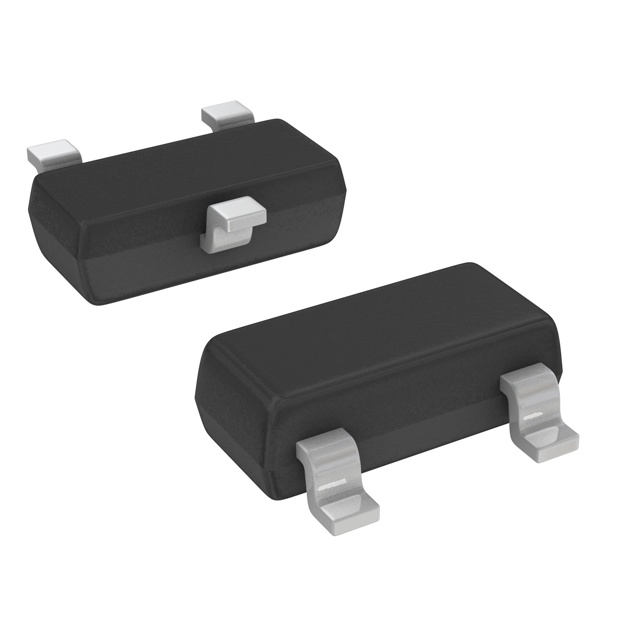

DDTA123YCA

DDTA123YCA Series

PNP, 50V, 0.1A, SOT523

Manufacturer: Diodes Inc

Catalog

PNP, 50V, 0.1A, SOT523

Description

AI

TN1.pdf

Catalog

PNP, 50V, 0.1A, SOT523

Part	Mounting Type	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Resistor - Emitter Base (R2)	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistor - Base (R1)	Package / Case	Transistor Type	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce
Diodes Inc DDTA123JKA-7-F	Surface Mount	200 mW	80	47000 Ohms	50 V	2.2 kOhm	SC-59 SOT-23-3 TO-236-3	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SC-59-3
Diodes Inc DDTA123JUA-7-F	Surface Mount	200 mW	80	47000 Ohms	50 V	2.2 kOhm	SC-70 SOT-323	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SOT-323
Diodes Inc DDTA123JE-7-F	Surface Mount	150 mW	80	47000 Ohms	50 V	2.2 kOhm	SOT-523	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SOT-523
Diodes Inc DDTA123TCA-7
Diodes Inc DDTA123YKA-7-F	Surface Mount	200 mW		10 kOhms	50 V	2.2 kOhm	SC-59 SOT-23-3 TO-236-3	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SC-59-3	33 hFE
Diodes Inc DDTA123ECA-7
Diodes Inc DDTA123ECA-7-F	Surface Mount	200 mW	20	2.2 kOhms	50 V	2.2 kOhm	SC-59 SOT-23-3 TO-236-3	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SOT-23-3
Diodes Inc DDTA123YCA-7-F	Surface Mount	200 mW		10 kOhms	50 V	2.2 kOhm	SOT-23-3 Flat Leads	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SOT-23F	33 hFE
Diodes Inc DDTA123YCA-7	Surface Mount	200 mW		10 kOhms	50 V	2.2 kOhm	SC-59 SOT-23-3 TO-236-3	PNP - Pre-Biased	100 mA	250 MHz	300 mV	500 nA	SOT-23-3	33 hFE
