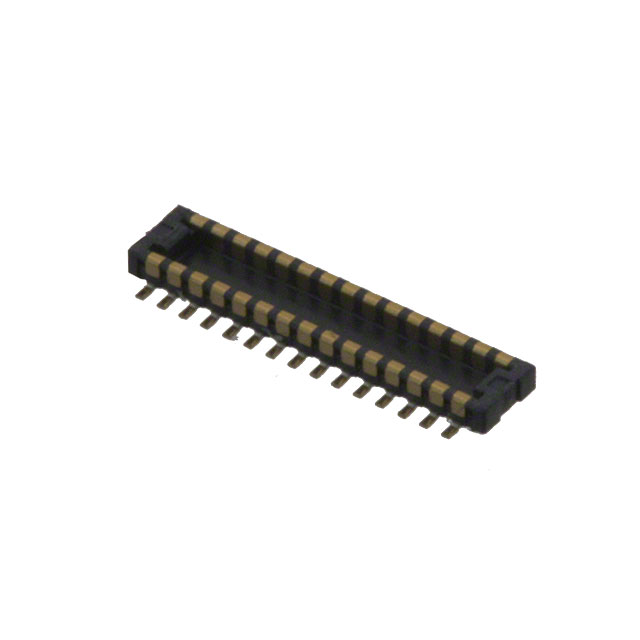

WP7-P026 Series

Catalog

CONN PLUG 26POS SMD GOLD

Part	Mated Stacking Heights	Pitch	Pitch	Contact Finish	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Features

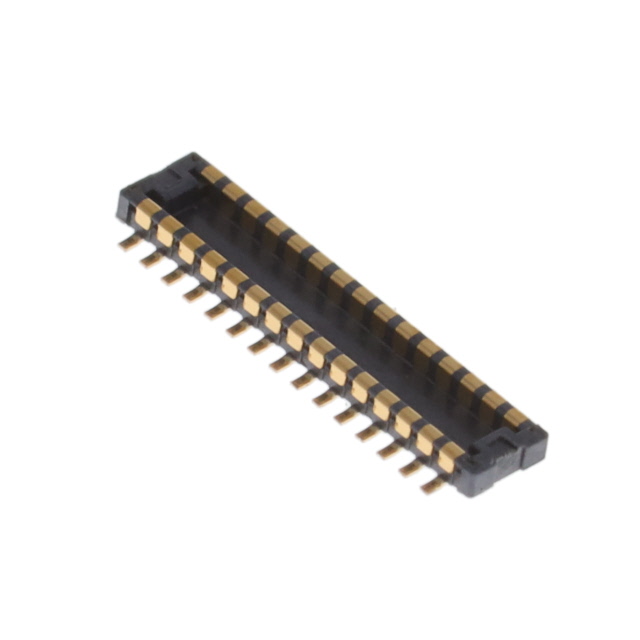

JAE Electronics WP7-P026VA1-R8000	0.7 mm	0.4 mm	0.016 in	Gold	Plug Outer Shroud Contacts	26	0.1 Ám	4 Áin	Surface Mount	2	0.02 in	0.5 mm	Solder Retention
JAE Electronics WP7-P026VA1-R500	0.7 mm	0.4 mm	0.016 in	Gold	Plug Outer Shroud Contacts	26	0.1 Ám	4 Áin	Surface Mount	2	0.02 in	0.5 mm	Solder Retention
