628W11W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 11P PNL MNT SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Contact Material	Color	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Flange Feature	Current Rating (Amps)	Number of Rows [custom]	Termination	Mounting Type	Connector Style	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Ingress Protection	Features	Contact Type	Connector Type	Shell Material, Finish	Shell Size, Connector Layout	Current Rating (Amps)	Flange Feature	Contact Finish Thickness
EDAC Inc. 628W11W1624-2ND	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Board Side (M3)	20A 5A	2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Board Lock Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1

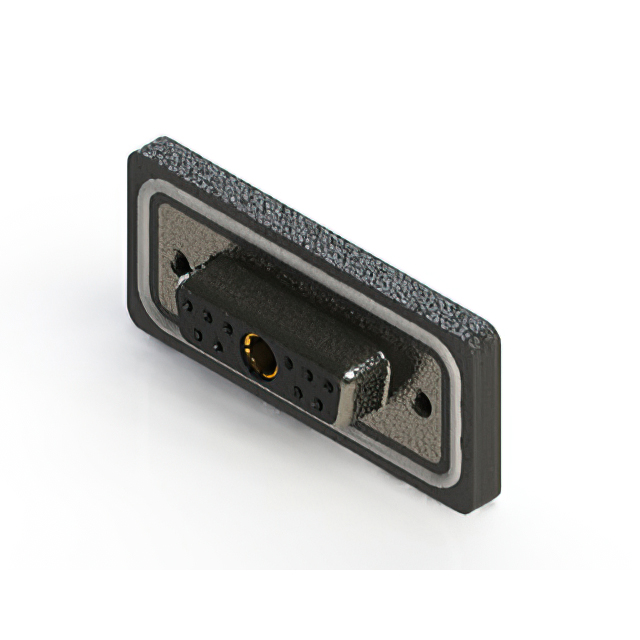

EDAC Inc. 628W11W1624-4NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell (M3)		2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1	5 A 40 A
EDAC Inc. 628W11W1622-3N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell		2		Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1	5 A 30 A	4-40
EDAC Inc. 628W11W1624-1NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell (M3)	10A 5A	2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1
EDAC Inc. 628W11W1624-1N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell	10A 5A	2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1		4-40
EDAC Inc. 628W11W1624-3NA	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell (M3)		2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1	5 A 30 A

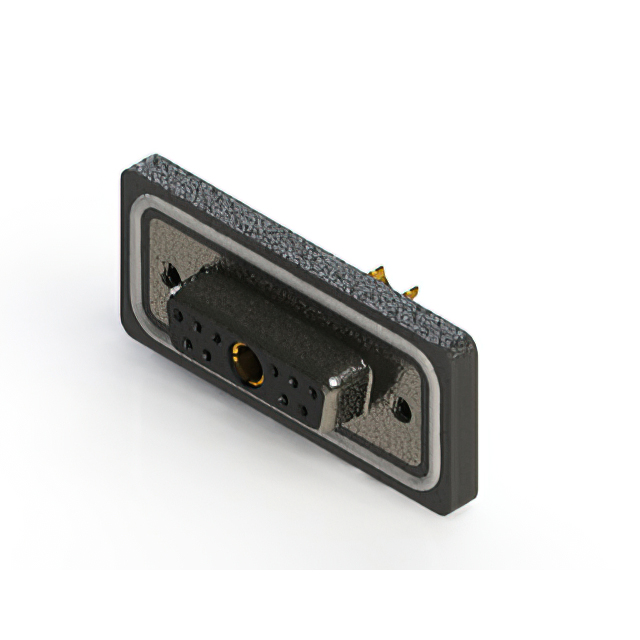

EDAC Inc. 628W11W1622-4N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell		2		Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1	5 A 40 A	4-40
EDAC Inc. 628W11W1624-2N5	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Board Side (4-40)	20A 5A	2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Board Lock Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1
EDAC Inc. 628W11W1224-3ND	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Board Side (M3)		2	Solder	Panel Mount Through Hole	Combo D-Sub	Gold			IP67 - Dust Tight Waterproof	Board Lock Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1	5 A 30 A		Flash
EDAC Inc. 628W11W1622-1N2	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Black	125 VDC	10	1	UL94 V-0	Housing/Shell	10A 5A	2		Panel Mount Through Hole	Combo D-Sub	Gold	30 Áin	0.76 Ám	IP67 - Dust Tight Waterproof	Shielded	Signal and Power	Receptacle Female Sockets	Nickel Plated Steel	2 (DA A) - 11C1 11W1		4-40
