R12836 Series

Catalog

BMA / RIGHT ANGLE 2 HOLE FLANGE

Part	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Voltage Rating	Center Contact Plating	Body Finish	Center Contact Material	Dielectric Material	Shield Termination	Frequency - Max [Max]	Connector Type	Mounting Feature	Cable Group	Number of Ports	Contact Termination	Fastening Type	Housing Color	Connector Style	Impedance	Mounting Type

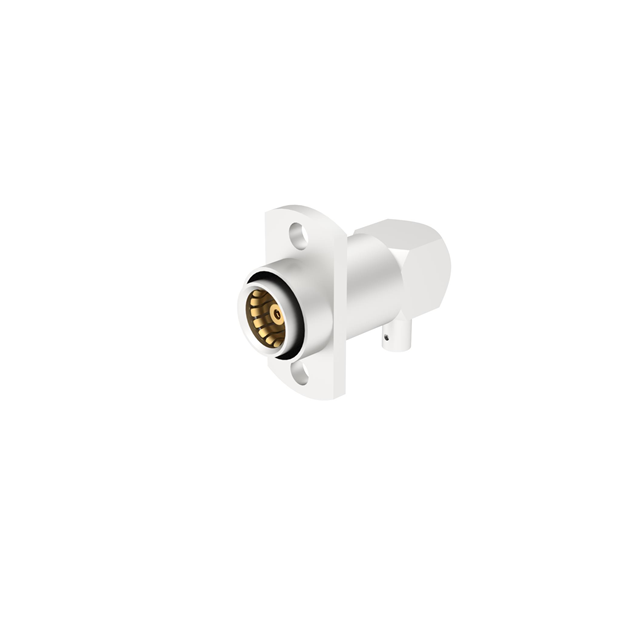

Radiall USA, Inc. R128360717	Brass	150 °C	-65 ░C	1000	350 VDC	Gold	White Bronze	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Solder	12.4 GHz	Female Socket Jack	Flange	RG-405 (.085" Semi Rigid)	1	Solder	Snap-On	Silver	BMA	50 Ohms	Panel Mount Right Angle
Radiall USA, Inc. R128360717W	Brass	150 °C	-65 ░C	1000	350 VDC	Gold	White Bronze	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Solder	12.4 GHz	Female Socket Jack	Flange	RG-405 (.085" Semi Rigid)	1	Solder	Snap-On	Silver	BMA	50 Ohms	Panel Mount Right Angle
Radiall USA, Inc. R128368707W	Brass Bronze	165 °C	-65 ░C	500	350 VDC	Gold	White Bronze	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Crimp	12.4 GHz	Female Socket Jack	Flange	223 400 RG-142	1	Crimp	Snap-On	Silver	BMA	50 Ohms	Panel Mount Right Angle
