6GK57954 Series

Manufacturer: Siemens

Catalog

IWLAN ANTENNA ANT795-4MC

Part	VSWR	Frequency Group	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Ingress Protection	Frequency (Center/Band)	Termination	Gain	Number of Bands	Antenna Type	Applications	Height (Max) [z]	Height (Max) [z]

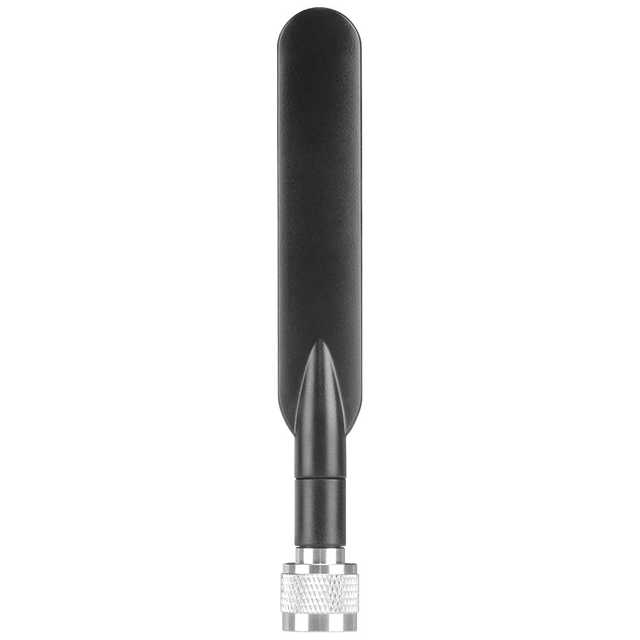

Siemens 6GK57954MC000AA3	2	SHF UHF	Connector Mount	160 mm	6.299 in	WiFi	2.4835 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	IP65	2.44175 GHz 5.25 GHz 5.7875 GHz	N Type Male	3 dBi 5 dBi	3	Tilt Whip	WLAN

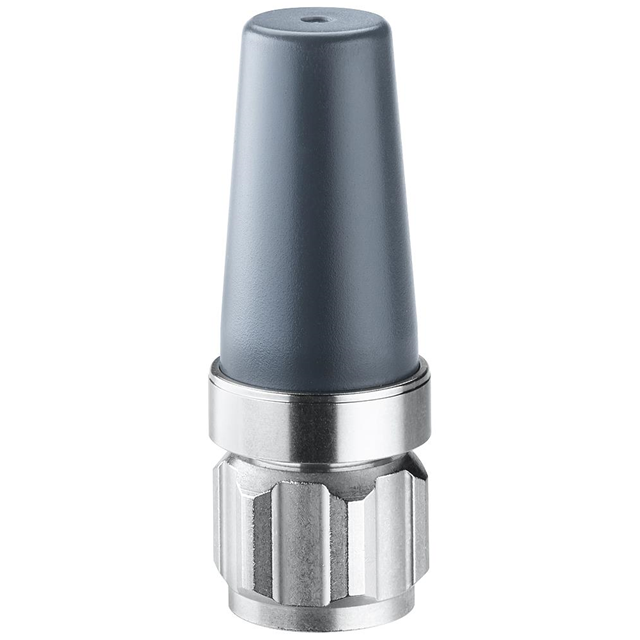

Siemens 6GK57954MX000AA0	2	Wide Band	Panel Mount			WiFi	2 GHz 2.7 GHz 3.8 GHz 5.925 GHz 7.125 GHz	1.7 GHz 2 GHz 2.7 GHz 4.9 GHz 5.925 GHz	IP68 IP69K	1.85 GHz 2.35 GHz 3.25 GHz 5.412 GHz 6525 MHz	N Type Male	2 dBi 2.5 dBi	5	Dome	WLAN	2.165 in	55 mm

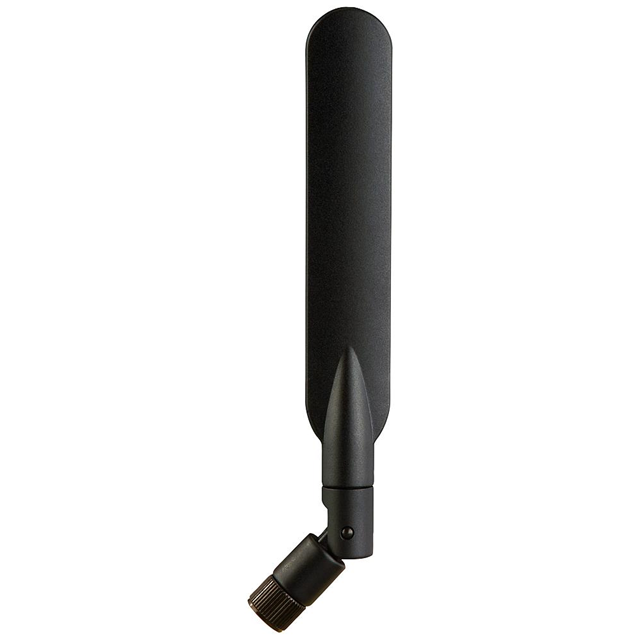

Siemens 6GK57954MA000AA3	2	SHF UHF	Connector Mount	160 mm	6.299 in	WiFi	2.4835 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	IP30	2.44175 GHz 5.25 GHz 5.7875 GHz	RP-SMA Male	3 dBi 5 dBi	3	Tilt Whip	WLAN

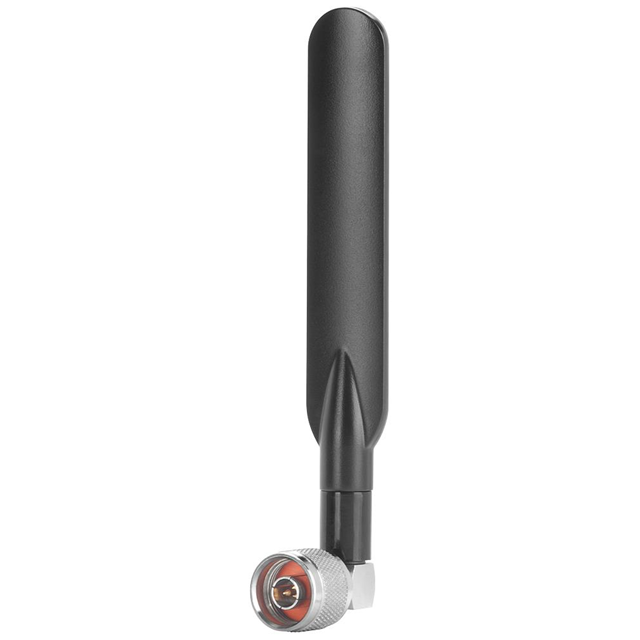

Siemens 6GK57954MD000AA3	2	Wide Band	Connector Mount	160 mm	6.299 in	WiFi	2.48 GHz 5.35 GHz 5.85 GHz	2.4 GHz 5.15 GHz 5.725 GHz	IP65	2.44 GHz 5.25 GHz 5.787 GHz	N Type	3 dBi 5 dBi	3	Right Angle Whip	Wi-Fi WLAN

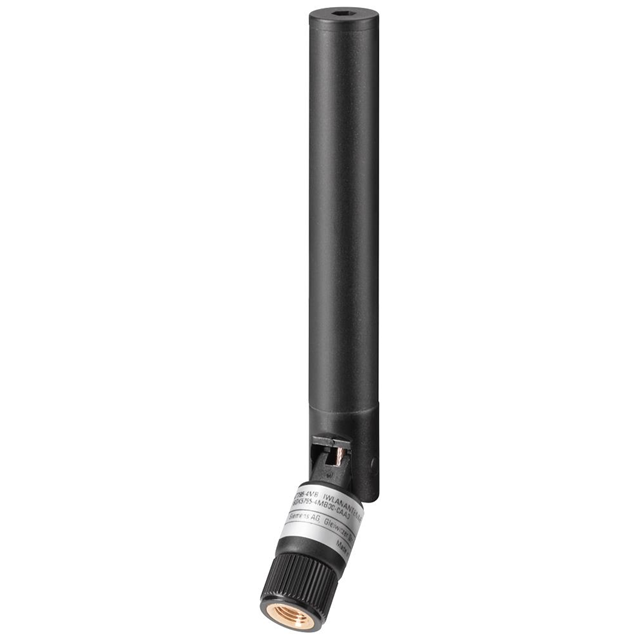

Siemens 6GK57954MB000AA0	2	Wide Band	Connector Mount			WiFi	2.5 GHz 5.85 GHz	2.4 GHz 5.15 GHz	IP65	2.45 GHz 5.5 GHz	SMA	2 dBi 3 dBi	2	Tilt Whip	Wi-Fi WLAN	4.488 in	114 mm
