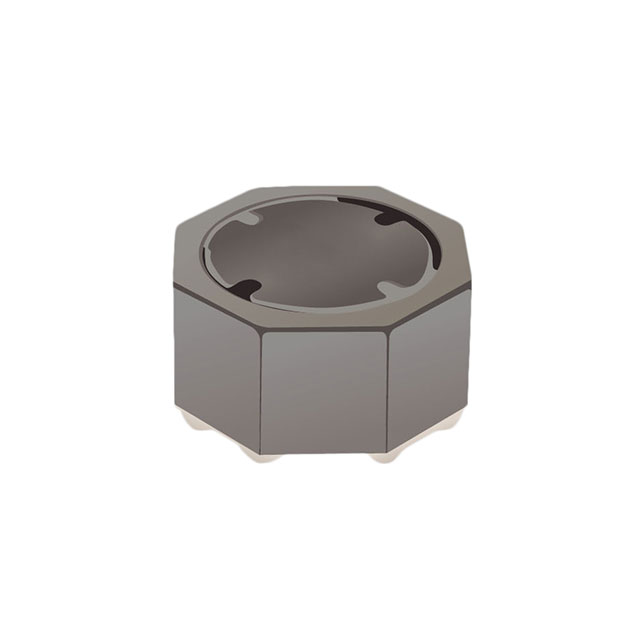

SRU8045A Series

Catalog

POWER INDUCTOR (SMD), 22 ΜH, 2.25 A, SHIELDED, 2.15 A, SRU8045A SERIES

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Ratings	Tolerance	Mounting Type	Inductance	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)	Frequency - Self Resonant	DC Resistance (DCR)	Shielding	Q @ Freq	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRU8045A-220Y	0.189 "	4.8 mm	AEC-Q200	30 %	Surface Mount	22 µH	100 kHz	125 °C	-40 C	2.25 A	Ferrite	2.15 A	12 MHz	122 mOhm	Shielded	2.52 MHz 18	4-SMD	8 mm	0.315 in	8 mm	0.315 in	Drum Core Wirewound
Bourns Inc. SRU8045A-470Y	0.189 "	4.8 mm	AEC-Q200	30 %	Surface Mount	47 µH	100 kHz	125 °C	-40 C	1.45 A	Ferrite	1.4 A	6 MHz		Shielded		4-SMD	8 mm	0.315 in	8 mm	0.315 in	Drum Core Wirewound	270 mOhm	12	2.52 MHz
Bourns Inc. SRU8045A-6R2Y	0.189 "	4.8 mm	AEC-Q200	30 %	Surface Mount	6.2 µH	100 kHz	125 °C	-40 C	4.2 A	Ferrite	3.8 A	23 MHz		Shielded	7.96 MHz 10	4-SMD	8 mm	0.315 in	8 mm	0.315 in	Drum Core Wirewound	36 mOhm
Bourns Inc. SRU8045A-100Y	0.189 "	4.8 mm	AEC-Q200	30 %	Surface Mount	10 µH	100 kHz	125 °C	-40 C	3.5 A	Ferrite	3.3 A	18 MHz		Shielded	2.52 MHz 16	4-SMD	8 mm	0.315 in	8 mm	0.315 in	Drum Core Wirewound	48 mOhm
Bourns Inc. SRU8045A-101Y	0.189 "	4.8 mm	AEC-Q200	30 %	Surface Mount	100 µH	100 kHz	125 °C	-40 C	1 A	Ferrite	920 mA	3 MHz		Shielded		4-SMD	8 mm	0.315 in	8 mm	0.315 in	Drum Core Wirewound	500 mOhm	20	796 kHz
