745-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 72POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions	Pitch	Pitch	Number of Rows	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Type	Termination	Card Type	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row
EDAC Inc. 745-072-522-106	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Single Edge
EDAC Inc. 745-072-540-106	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit Wire Wrap	Non Specified - Single Edge
EDAC Inc. 745-072-520-206	Polyester Thermoplastic		72	0.1 "	2.54 mm		Female	Dual	30 Áin	0.76 Ám		Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Dual Edge	2	2	36
EDAC Inc. 745-072-520-201	Polyester Thermoplastic		72	0.1 "	2.54 mm		Female	Dual	30 Áin	0.76 Ám		Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Dual Edge	2	2	36
EDAC Inc. 745-072-522-101	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Single Edge
EDAC Inc. 745-072-525-106	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Single Edge

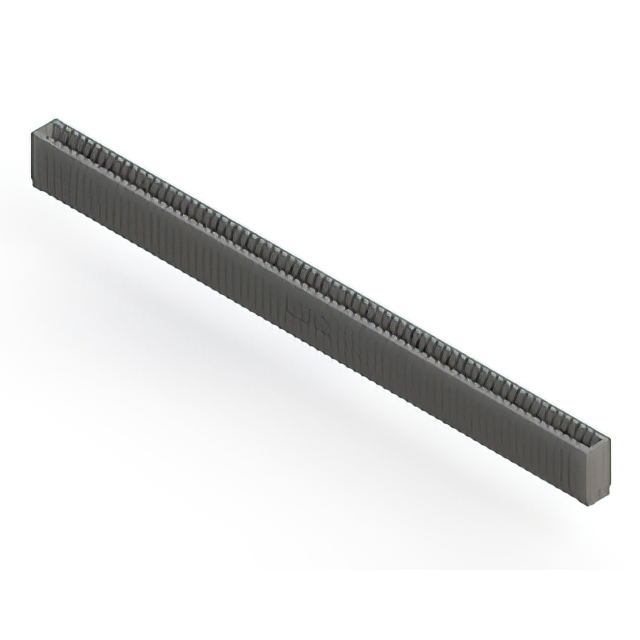

EDAC Inc. 745-072-520-101	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Single Edge
EDAC Inc. 745-072-541-101	Polyester Thermoplastic	1	72	0.1 "	2.54 mm	1	Female	Single	30 Áin	0.76 Ám	72	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit Wire Wrap	Non Specified - Single Edge

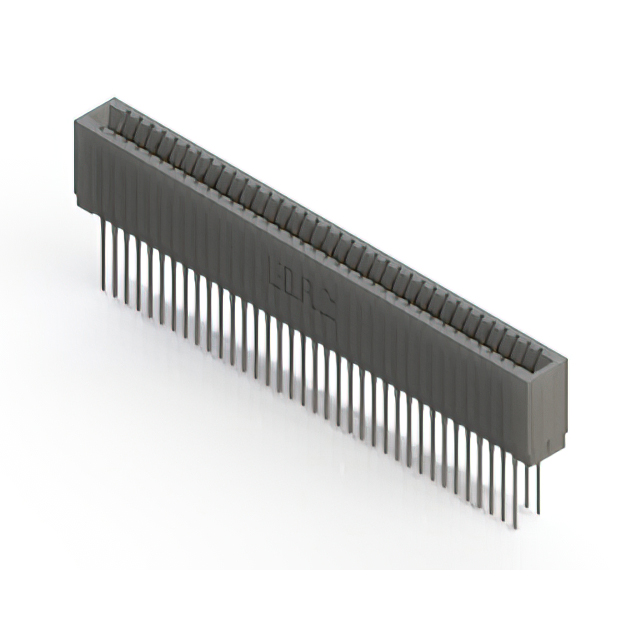

EDAC Inc. 745-072-545-201	Polyester Thermoplastic		72	0.1 "	2.54 mm		Female	Dual	30 Áin	0.76 Ám		Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Dual Edge	2	2	36
EDAC Inc. 745-072-525-206	Polyester Thermoplastic		72	0.1 "	2.54 mm		Female	Dual	30 Áin	0.76 Ám		Through Hole	Gold	Copper Alloy	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	Non Specified - Dual Edge	2	2	36
