ATS-01E Series
Manufacturer: Advanced Thermal Solutions Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

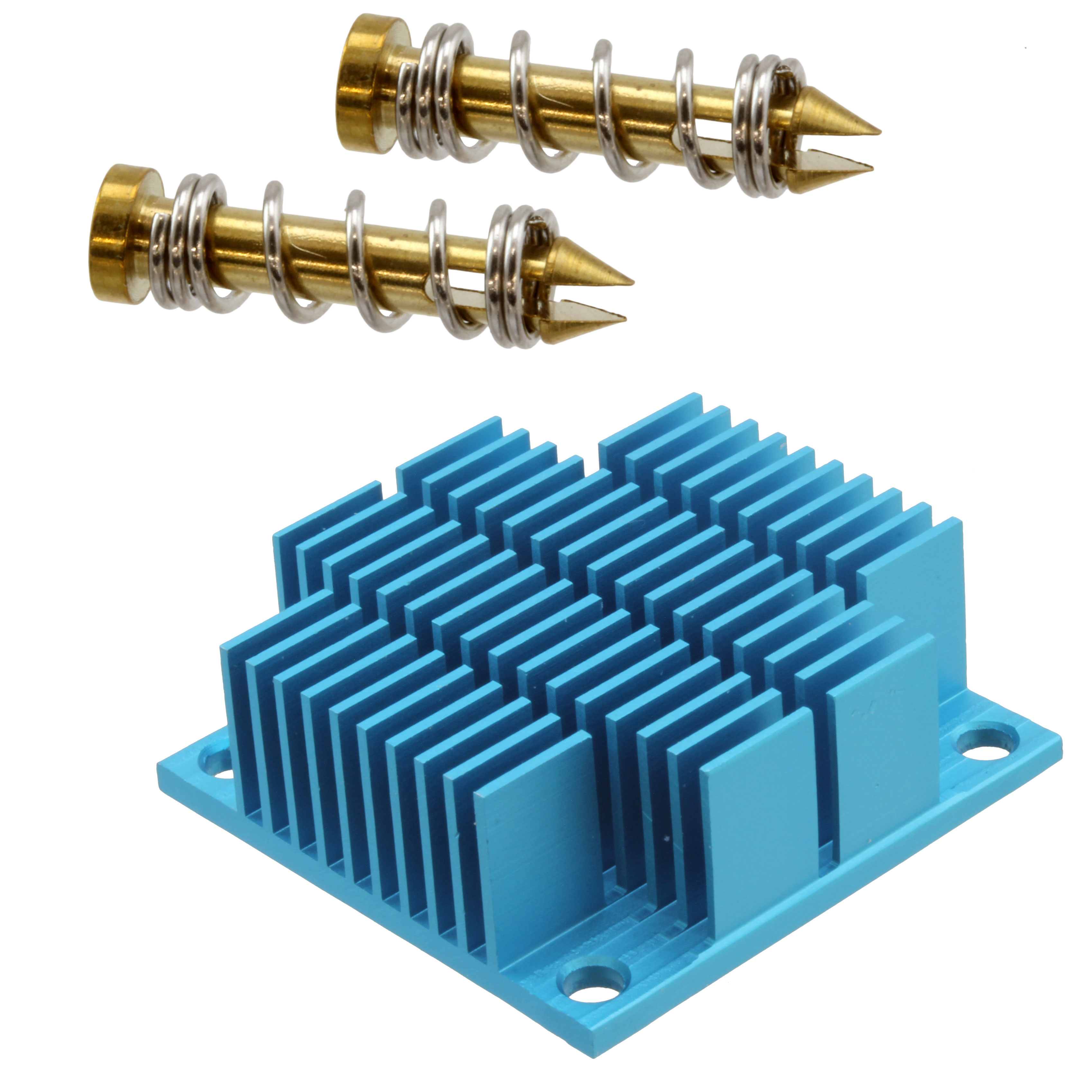

HEATSINK 40X40X35MM R-TAB T412
| Part | Package Cooled | Material | Width | Attachment Method | Shape | Length | Thermal Resistance | Fin Height | Type | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.575 in | Push Pin | Fins Square | 1.575 in | 5.73 °C/W | 1.378 in | Top Mount | Blue Anodized |
Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.575 in | Push Pin | Fins Square | 1.575 in | 2.9 °C/W | 1.378 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.772 in | Push Pin | Fins Square | 1.772 in | 6.67 °C/W | 1.181 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 2.126 in | Push Pin | Fins Square | 2.126 in | 7.21 °C/W | 0.984 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.181 in | Push Pin | Fins Square | 1.181 in | 19.03 °C/W | 0.59 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 2.756 in | Push Pin | Fins Square | 2.756 in | 14.19 °C/W | 0.394 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.181 in | Push Pin | Fins Square | 1.181 in | 15.9 °C/W | 0.394 in | Top Mount | Blue Anodized |
 Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.772 in | Push Pin | Fins Square | 1.772 in | 10.58 °C/W | 0.394 in | Top Mount | Blue Anodized |
Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.772 in | Push Pin | Fins Square | 1.772 in | 2.99 °C/W | 1.181 in | Top Mount | Blue Anodized |
Advanced Thermal Solutions Inc. | ASIC ASIC...) Assorted (BGA BGA CPU LGA | Aluminum | 1.575 in | Push Pin | Fins Square | 1.575 in | 4.26 °C/W | 0.984 in | Top Mount | Blue Anodized |
