803-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 50POS 0.1 GOLD PCB

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Number of Rows [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Termination	Mounting Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Mill-Max Manufacturing Corp. 803-43-050-61-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	50	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.104 in	2.64 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Press-Fit Solder	Through Hole	Push-Pull
Mill-Max Manufacturing Corp. 803-43-028-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	28	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.125 in	3.18 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.165 in	4.2 mm	Solder	Through Hole	Push-Pull
Mill-Max Manufacturing Corp. 803-43-046-61-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	46	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.104 in	2.64 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Press-Fit Solder	Through Hole	Push-Pull

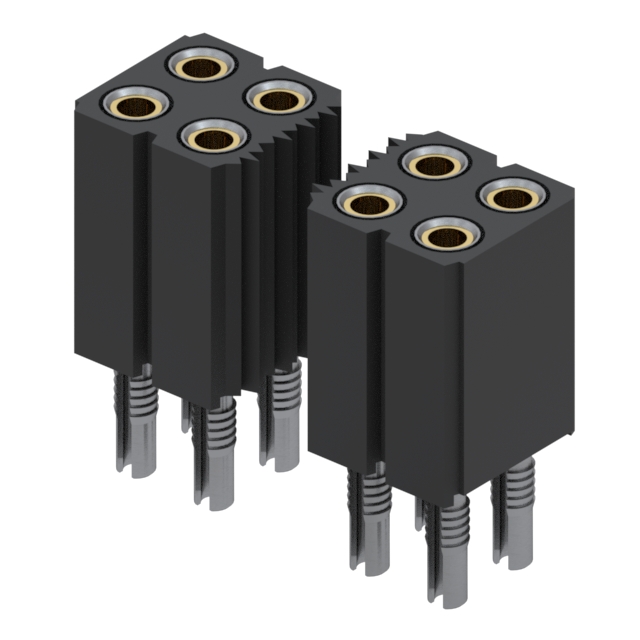

Mill-Max Manufacturing Corp. 803-43-052-62-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	52	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.143 in	3.63 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Press-Fit Solder	Through Hole	Push-Pull
Mill-Max Manufacturing Corp. 803-43-056-61-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	56	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.104 in	2.64 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Press-Fit Solder	Through Hole	Push-Pull

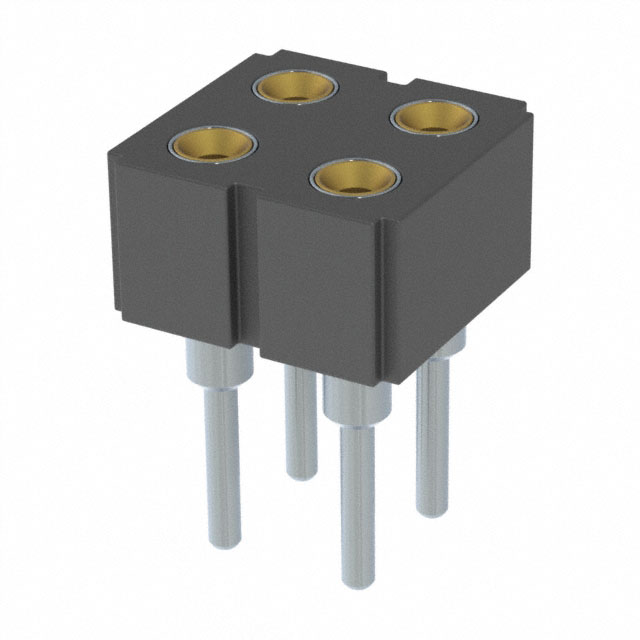

Mill-Max Manufacturing Corp. 803-43-004-10-003000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	4	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.125 in	3.18 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.165 in	4.2 mm	Solder	Through Hole	Push-Pull

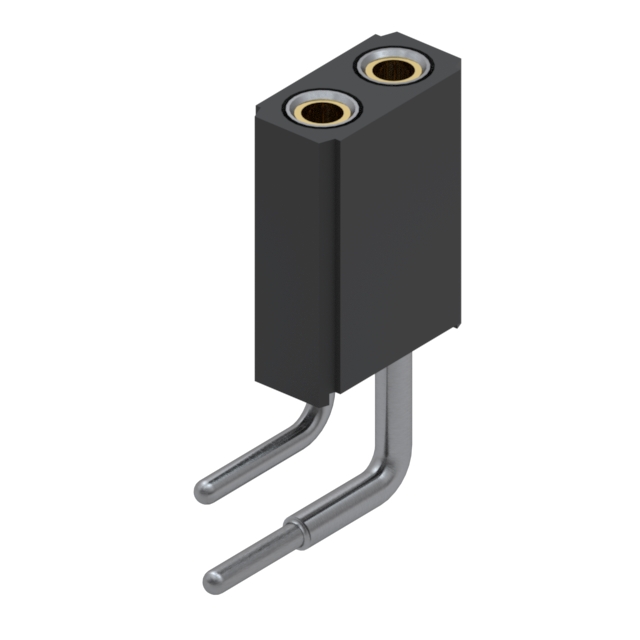

Mill-Max Manufacturing Corp. 803-43-002-20-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper			2	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C			Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket			Solder	Right Angle Through Hole	Push-Pull	0.126 "	3.2 mm	0.2 in	5.08 mm
Mill-Max Manufacturing Corp. 803-43-028-62-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	28	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.143 in	3.63 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Press-Fit Solder	Through Hole	Push-Pull

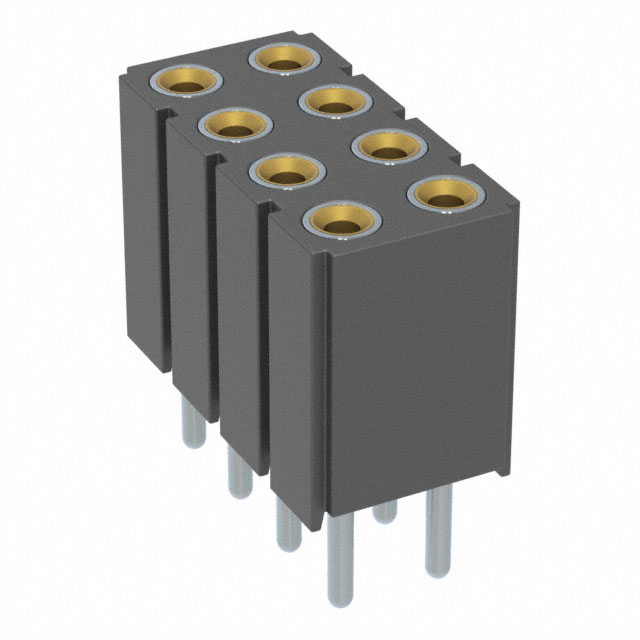

Mill-Max Manufacturing Corp. 803-43-008-10-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	8	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.118 in	3 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.276 in	7 mm	Solder	Through Hole	Push-Pull

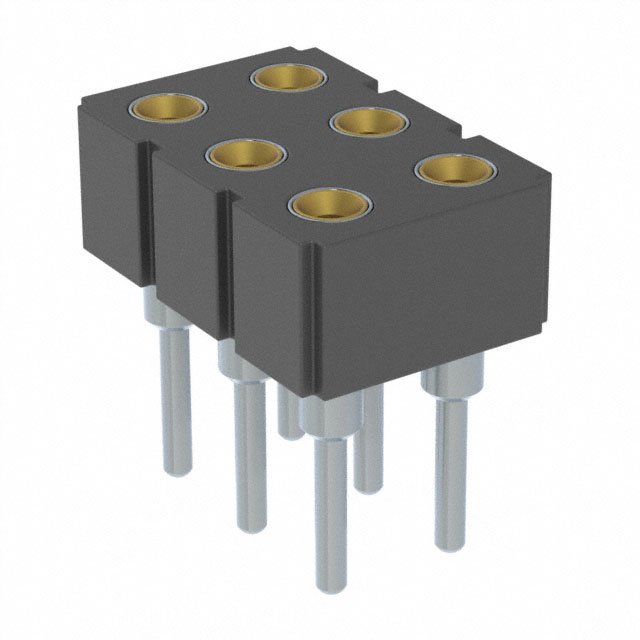

Mill-Max Manufacturing Corp. 803-43-006-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 "	2.54 mm	6	0.1 in	2.54 mm	Gold	2	UL94 V-0	-55 C	125 °C	0.125 in	3.18 mm	Black	Tin	Receptacle	0.76 Ám	30 Áin	4.5 A	All	Female Socket	0.165 in	4.2 mm	Solder	Through Hole	Push-Pull
