LB26SKW Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Voltage Rating - DC	Mounting Type	Illumination Voltage (Nominal)	Termination Style	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Actuator Type	Illumination Type, Color
NKK Switches LB26SKW01-1C-A	100000 Cycles	200000 Cycles	Black	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	1.9 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	LED Red
NKK Switches LB26SKW01-1D-A	100000 Cycles	200000 Cycles	Black	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	2 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	Amber LED

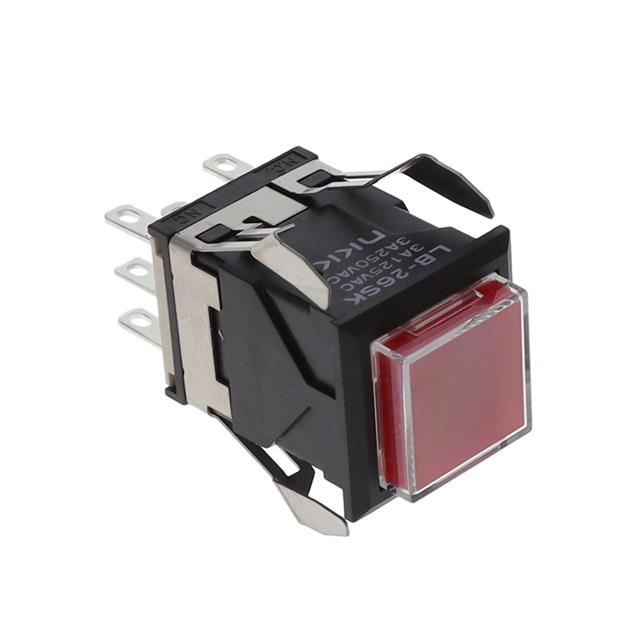

NKK Switches LB26SKW01-5C05-JC	100000 Cycles	200000 Cycles	Clear	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	5 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	LED Red
NKK Switches LB26SKW01-JC	100000 Cycles	200000 Cycles	Clear	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In		Solder Quick Connect - 0.110" (2.8mm)	3 A	Standard	70 °C	-25 °C	125 V	No Marking	Button Square

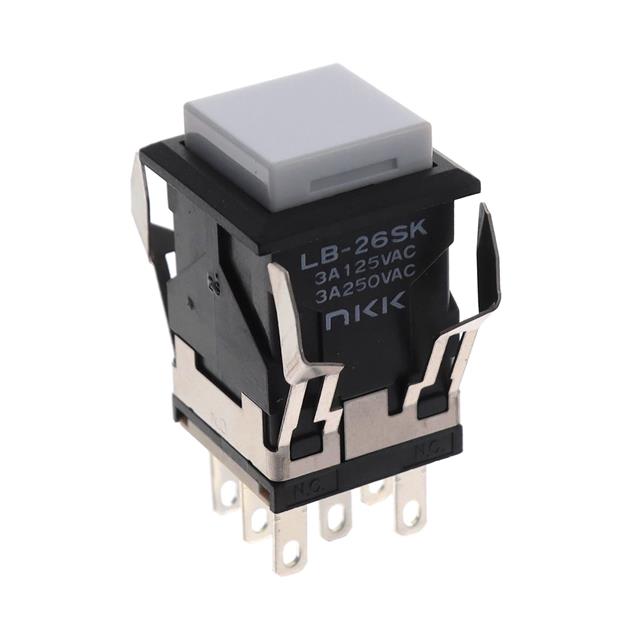

NKK Switches LB26SKW01-B	100000 Cycles	200000 Cycles	White	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In		Solder Quick Connect - 0.110" (2.8mm)	3 A	Standard	70 °C	-25 °C	125 V	No Marking	Button Square
NKK Switches LB26SKW01-F	100000 Cycles	200000 Cycles	Green	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In		Solder Quick Connect - 0.110" (2.8mm)	3 A	Standard	70 °C	-25 °C	125 V	No Marking	Button Square
NKK Switches LB26SKW01-1F-A	100000 Cycles	200000 Cycles	Black	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	2.1 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	Green LED
NKK Switches LB26SKW01-01-JC	100000 Cycles	200000 Cycles	Clear	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	110 VAC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	Neon Red

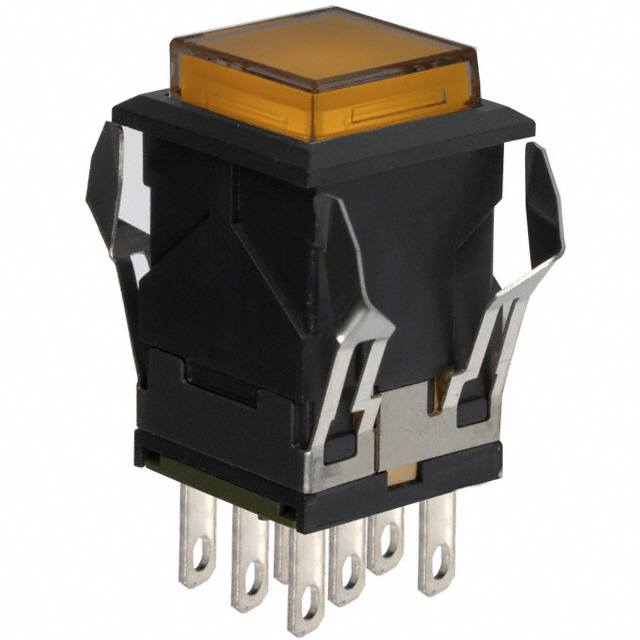

NKK Switches LB26SKW01-5D-JD	100000 Cycles	200000 Cycles	Clear	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	2 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	Amber LED
NKK Switches LB26SKW01-5D05-JD	100000 Cycles	200000 Cycles	Clear	DPDT	16.2 mm	16.2 mm	On-On	30 V	Panel Mount Snap-In	5 VDC	Solder Quick Connect - 0.110" (2.8mm)	3 A	Illuminated Standard	50 °C	-25 °C	125 V	No Marking	Button Square	Amber LED
