SFR4R Series

Catalog

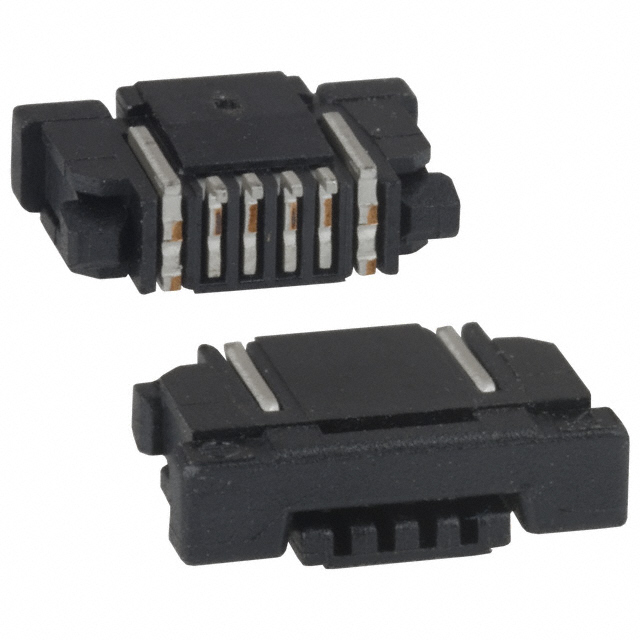

CONN FFC BOTTOM 4POS 0.8MM R/A

Part	Actuator Color	Housing Color	Termination	Number of Positions	Material Flammability Rating	Contact Material	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Connector/Contact Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Housing Material	Contact Finish	Actuator Material	Mounting Type	Locking Feature	Cable End Type
Amphenol ICC (FCI) SFR4R-1STE1LF	Black	Black	Solder	4	UL94 V-0	Phosphor Bronze	0.3 mm	0.33 mm	Contacts Bottom	0.8 mm	0.031 in	0.098 in	2.5 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	Straight or Tapered
