1734324 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

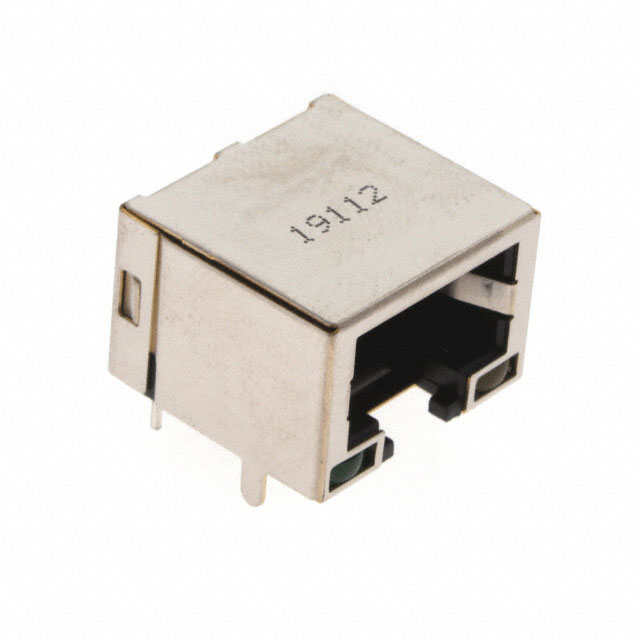

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Number of Ports | Orientation | Features | Contact Material | Mounting Type | Shielding | Termination | Number of Positions/Contacts | Number of Rows | Connector Type | Contact Finish | LED Color | Tab Direction | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.152 Ám | 6 Áin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Yellow - Green | Down | Cat3 |
 TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.76 Ám | 30 Áin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Green - Yellow | Down | Cat3 |
TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.38 µm | 15 µin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Yellow - Green | Down | Cat3 |
TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.76 Ám | 30 Áin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | EMI Finger Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Green - Yellow | Down | Cat3 |
TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.38 µm | 15 µin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Green - Yellow | Down | Cat3 |
TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.76 Ám | 30 Áin | 1 | 90 ° | Board Guide | Phosphor Bronze | Through Hole | EMI Finger Shielded | Solder | 8p8c (RJ45 Ethernet) | 1 | Jack | Gold | Green - Yellow | Down |
