BE-2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 25A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operating Force [Min]	Operating Force [Max]	Release Force	Overtravel	Overtravel	Switch Function	Mounting Type	Pretravel	Pretravel	Voltage Rating - AC	Circuit	Mechanical Life	Current Rating (Amps)	Operating Position	Operating Position	Features	Differential Travel	Differential Travel	Actuator Type	Operating Force	Overtravel [x]	Overtravel [x]
Honeywell Sensing and Productivity Solutions BE-2RB	85 °C	-55 °C	Solder Lug	397 gf	624 gf	283 gf	0.094 in	2.4 mm	On-Mom	Chassis Mount	0.05 in	1.27 mm	125 V	SPDT	20000000 Cycles	25 A	26.2 mm	1.03 "	Stainless Steel Plunger	0.007 in	0.18 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions BE-2RV24-A2	121 °C	-55 °C	Screw Terminal			14 gf	0.079 in	2 mm	On-Mom	Chassis Mount	0.625 in	15.9 mm	125 V	SPDT	20000000 Cycles	25 A	19.1 mm	0.75 "		0.11 in	2.8 mm	Lever Straight	71 gf
Honeywell Sensing and Productivity Solutions BE-2R25-A4	85 °C	-55 °C	Screw Terminal	397 gf	624 gf	283 gf	0.01 in	0.25 mm	On-Mom	Chassis Mount	0.05 in	1.27 mm	125 V	SPDT	20000000 Cycles	25 A	16.3 mm	0.64 in		0.004 in	0.1 mm	Round (Pin Plunger)

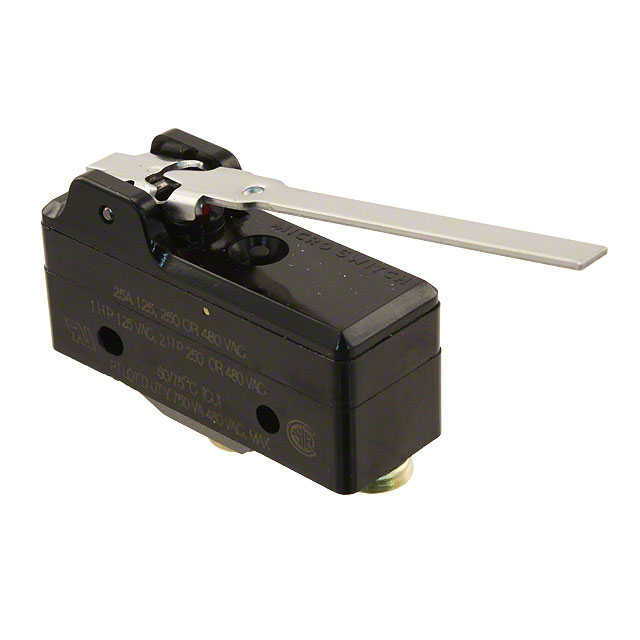

Honeywell Sensing and Productivity Solutions BE-2RV-A4	85 °C	-55 °C	Screw Terminal			14 gf			On-Mom	Chassis Mount	0.63 "	16 mm	125 V	SPDT	20000000 Cycles	25 A	19.1 mm	0.75 "		0.11 in	2.8 mm	Lever Straight	71 gf	0.077 in	1.96 mm
Honeywell Sensing and Productivity Solutions BE-2R2425	121 °C	-55 °C	Screw Terminal			283 gf	0.01 in	0.25 mm	On-Mom	Chassis Mount	0.05 in	1.27 mm	125 V	SPDT	20000000 Cycles	25 A	16.3 mm	0.64 in		0.001 in	0.025 mm	Round (Pin Plunger)	709 gf

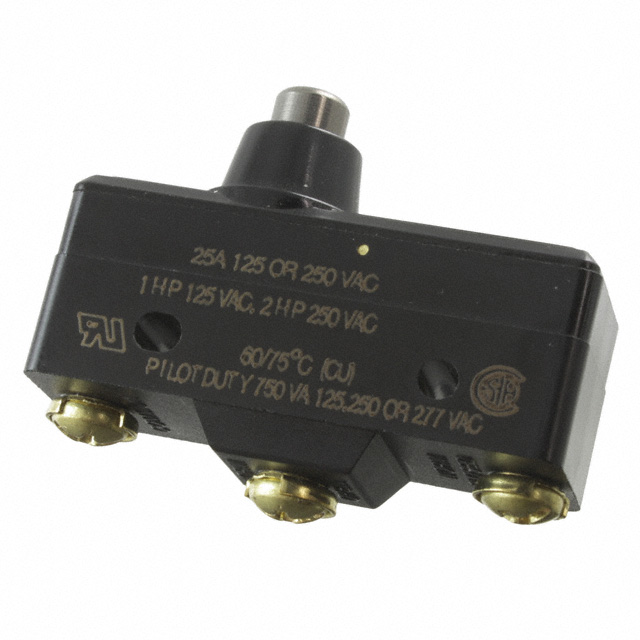

Honeywell Sensing and Productivity Solutions BE-2RB-A2	85 °C	-55 °C	Screw Terminal	397 gf	624 gf	283 gf	0.094 in	2.4 mm	On-Mom	Chassis Mount	0.05 in	1.27 mm	125 V	SPDT	20000000 Cycles	25 A	26.2 mm	1.03 "	Stainless Steel Plunger	0.007 in	0.18 mm	Round (Pin Plunger)
