78042 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

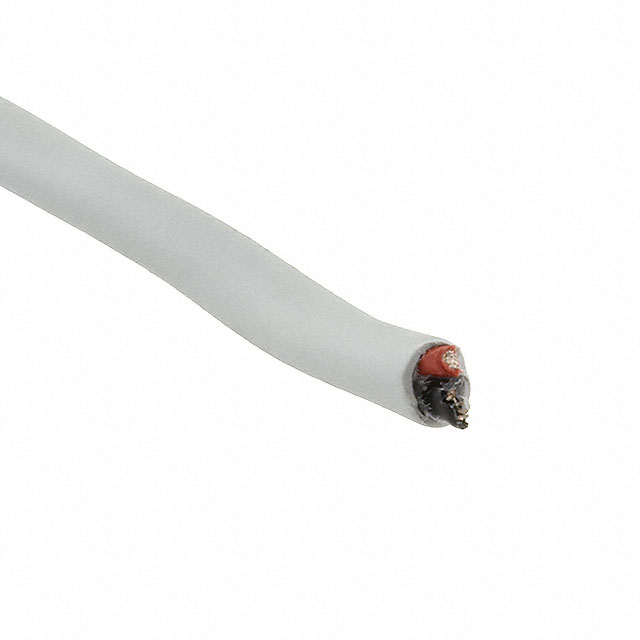

CABLE 2COND 20AWG SLATE 1000'
| Part | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Features | Cable Type | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Wire Gauge | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | -40 °C | 80 C | 300 V | Biological Compatibility Rip Cord | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | 2 | Slate | 0.142 in | 3.61 mm | ISO 10993 UL Style 21460 | 20 AWG | Polyphenylene Ether Modified (mPPE) | 19 | 32 AWG | 0.015 in | 0.381 mm | 1000 ft | 304.8 m |
