MX754 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC DAC 12BIT MULT 20-PLCC
| Part | Number of Bits | Mounting Type | Output Type | Voltage - Supply, Analog | Differential Output | Package / Case | Package / Case | Voltage - Supply, Digital | Supplier Device Package | Data Interface | INL/DNL (LSB) | Architecture | Settling Time | Reference Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | INL/DNL (LSB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | |||||||||||||||||||||

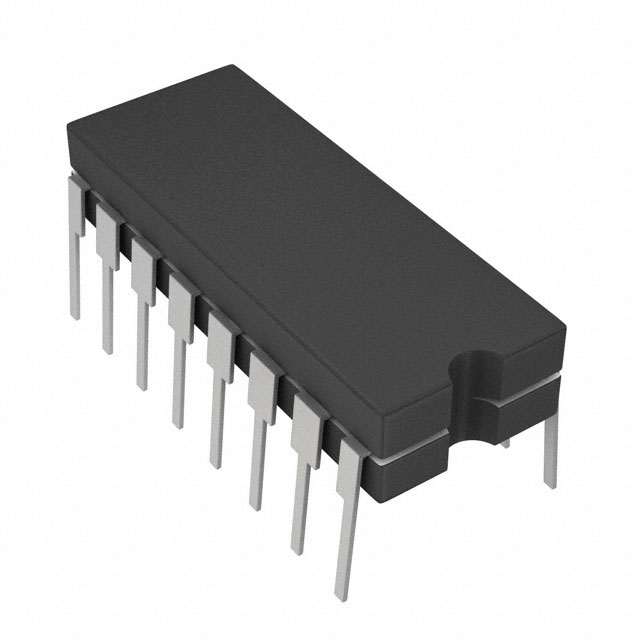

 Analog Devices Inc./Maxim Integrated | 12 bits | Through Hole | Current - Unbuffered | 5 V | 0.3 in 7.62 mm | 16-CDIP | 5 V | 16-CDIP | Serial | 1 LSB 2 LSB | R-2R | 2 µs | External | -55 °C | 125 °C | ||||||
Analog Devices Inc./Maxim Integrated | 12 bits | Through Hole | Current - Unbuffered | 0.3 in 7.62 mm | 16-CDIP | 16-CDIP SB | Parallel | R-2R | 2 µs | External | -55 °C | 125 °C | 5.25 V | 4.75 V | 5.25 V | 4.75 V | ±0.5 (Max) ±1 (Max) | ||||
 Analog Devices Inc./Maxim Integrated | 12 bits | Through Hole | Current - Unbuffered | 20-CDIP | 20-CDIP | Parallel | R-2R | 2 µs | External | -55 °C | 125 °C | 15 V | 5 V | 15 V | 5 V | ±0.5 (Max) ±1 (Max) | |||||
 Analog Devices Inc./Maxim Integrated | |||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 12 bits | Through Hole | Current - Unbuffered | 5 V | 0.3 in 7.62 mm | 16-CDIP | 5 V | 16-CDIP | Parallel | 1 LSB 2 LSB | R-2R | 2 µs | External | -55 °C | 125 °C |
