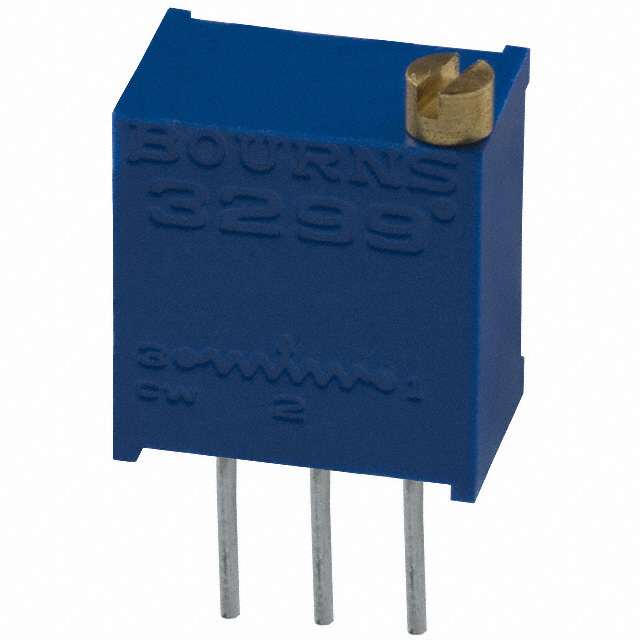

3299W Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER 10K OHM 0.5W PC PIN TOP
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Power (Watts) | Power (Watts) | Adjustment Type | Temperature Coefficient | Resistive Material | Mounting Type | Resistance | Termination Style | Number of Turns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 10000 Ohms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 50000 Ohms | PC Pins | 25 |
 Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 200 Ohms | PC Pins | 25 |
 Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | PC Pins | 25 | |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 100 Ohms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 1 MOhms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 20 Ohms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 10 Ohms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 200000 Ohms | PC Pins | 25 |
Bourns Inc. | 6.1 mm | 0.24 " | 0.375 in | 9.53 mm | 10 % | 0.5 W | 0.5 W | Top Adjustment | 100 ppm/°C | Cermet | Through Hole | 1000 Ohms | PC Pins | 25 |
