TS2C4M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

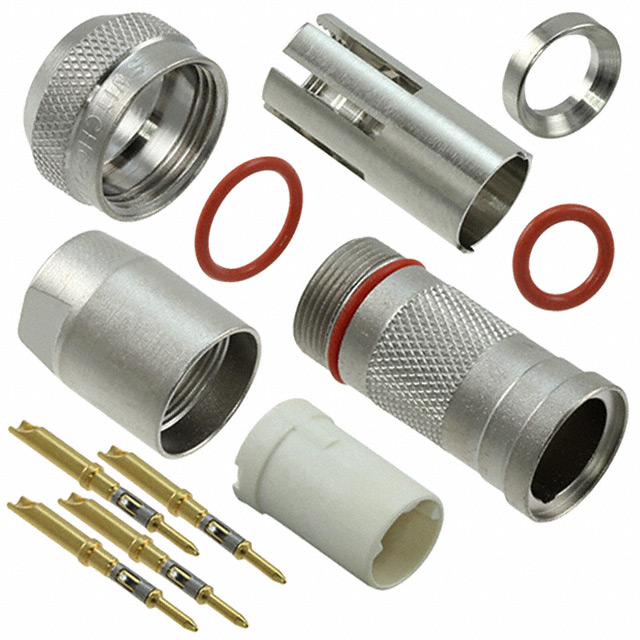

CONN PLUG MALE 4POS GOLD CRIMP
| Part | Ingress Protection | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Color | Shell Finish | Mounting Type | Backshell Material, Plating | Applications | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish - Mating | Contact Material | Shell Material | Orientation | Insert Material | Features | Voltage Rating | Connector Type | Primary Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | IP66 IP67 IP68 | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Silver | Electroless Nickel | Free Hanging (In-Line) | Copper Alloy Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Shielded | 135 °C | -40 °C | 4 | Gold | Copper Alloy | Copper Alloy | Keyed | Liquid Crystal Polymer (LCP) | Backshell Coupling Nut | 125 VAC | Male Pins Plug | Metal | Crimp Solder Cup |
