147104 Series

Catalog

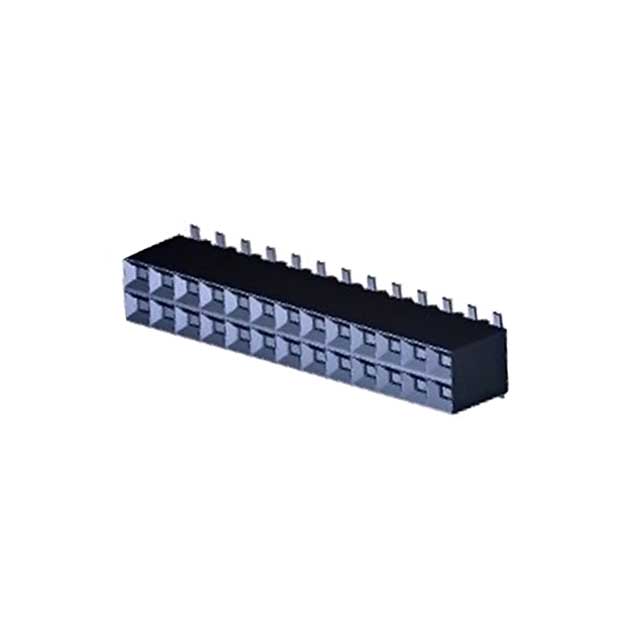

CONN RCPT 16POS 0.1 GOLD SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height	Number of Positions	Contact Finish - Mating	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Positions Loaded	Connector Type	Number of Rows [custom]	Insulation Color	Features	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 5-147104-8	Square	3.81 Ám	Phosphor Bronze	Polyester Glass Filled	2 A	Push-Pull	0.25 µm	10 µin	0.265 in	6.73 mm	16	Gold	Solder	Female Socket	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	Board to Board Cable	All	Receptacle Bottom or Top Entry	2	Black	Pick and Place	Surface Mount	0.1 "	2.54 mm	UL94 V-0
TE Connectivity AMP Connectors 6-147104-3	Square	3.81 Ám	Phosphor Bronze	Polyester Glass Filled	2 A	Push-Pull	0.25 µm	10 µin	0.265 in	6.73 mm	26	Gold	Solder	Female Socket	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	Board to Board Cable	All	Receptacle Bottom or Top Entry	2	Black	Pick and Place	Surface Mount	0.1 "	2.54 mm	UL94 V-0	150 Áin
