M13306 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

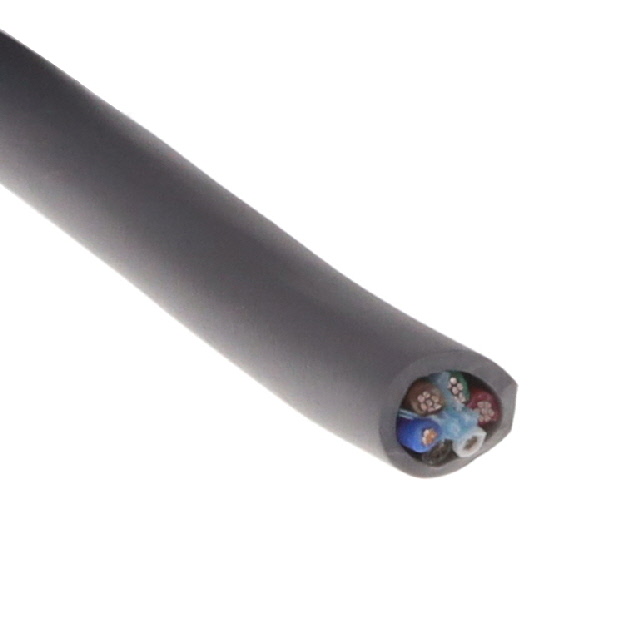

CABLE 6COND 22AWG SLATE 100'
| Part | Ratings | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | UL Style 2576 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.215 in | 5.46 mm | 28 AWG | 7 | 6 | Copper Tinned | 22 AWG | 0.813 mm | 0.032 in | 80 °C | -20 ░C | Slate | 100 ft | 30.5 m | ||
ALPHA WIRE | UL Style 2576 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.215 in | 5.46 mm | 28 AWG | 7 | 6 | Copper Tinned | 22 AWG | 0.813 mm | 0.032 in | 80 °C | -20 ░C | Slate | 304.8 m | 1000 ft |
