DC12.3102 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Connector Type	Features	Current Rating - Appliance Inlet	Filter Type	Ingress Protection	Mounting Type	Switch Features	Approval Agency	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]

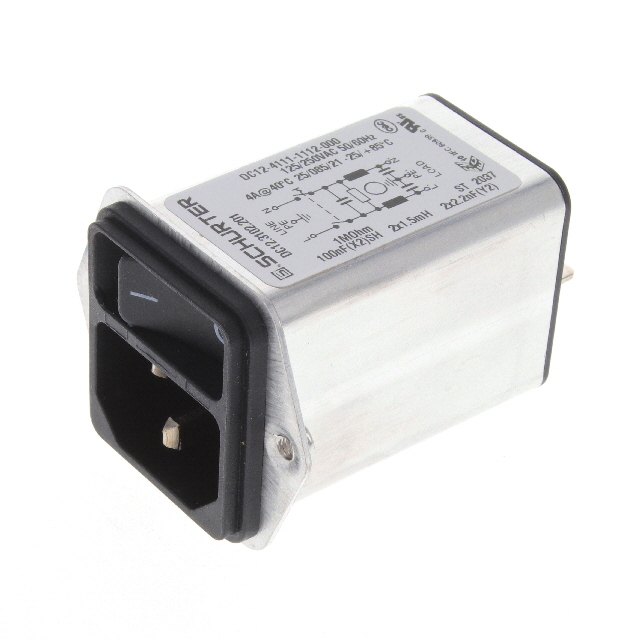

SCHURTER Inc. DC12.3102.201	IEC 320-C14	Receptacle Male Blades - Module	Shielded V-Lock Notch	10 A	Filtered (EMI RFI) - Commercial	IP40	Flange Panel Mount	Switch On-Off	CQC cULus ENEC	250 VAC	6.3 mm	Quick Connect	0.25 "	34.4 mm	30.4 mm	UL94 V-0	4 A

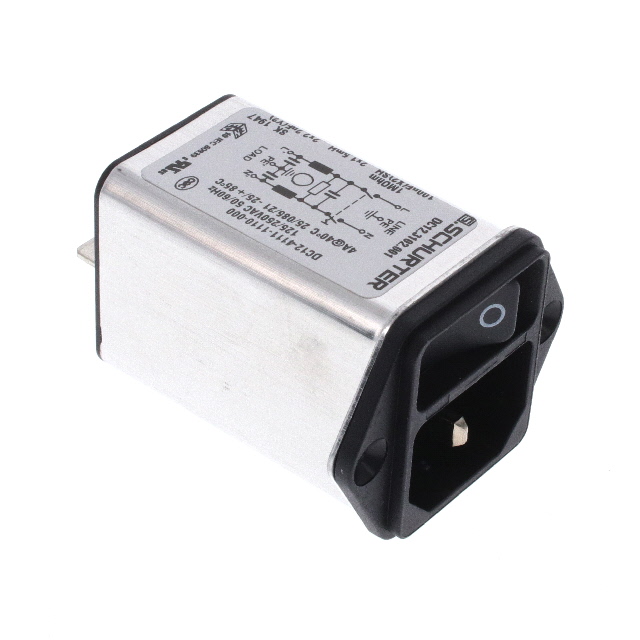

SCHURTER Inc. DC12.3102.001	IEC 320-C14	Receptacle Male Blades - Module	Shielded V-Lock Notch	10 A	Filtered (EMI RFI) - Commercial	IP40	Flange Panel Mount	Switch On-Off	CQC cULus ENEC	250 VAC	6.3 mm	Quick Connect	0.25 "	33.1 mm	29.1 mm	UL94 V-0	4 A

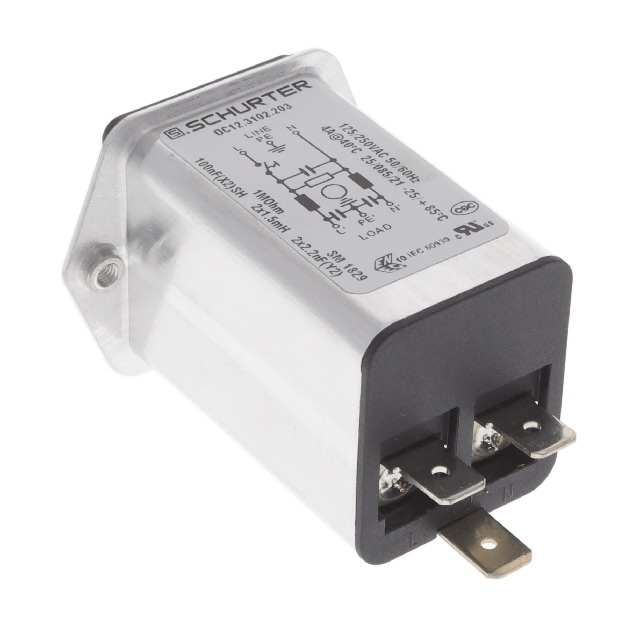

SCHURTER Inc. DC12.3102.203	IEC 320-C14	Receptacle Male Blades - Module	Shielded V-Lock Notch	10 A	Filtered (EMI RFI) - Commercial	IP40	Flange Panel Mount	Switch On-Off	CQC cULus ENEC	250 VAC	6.3 mm	Quick Connect	0.25 "	34.4 mm	30.4 mm	UL94 V-0	4 A

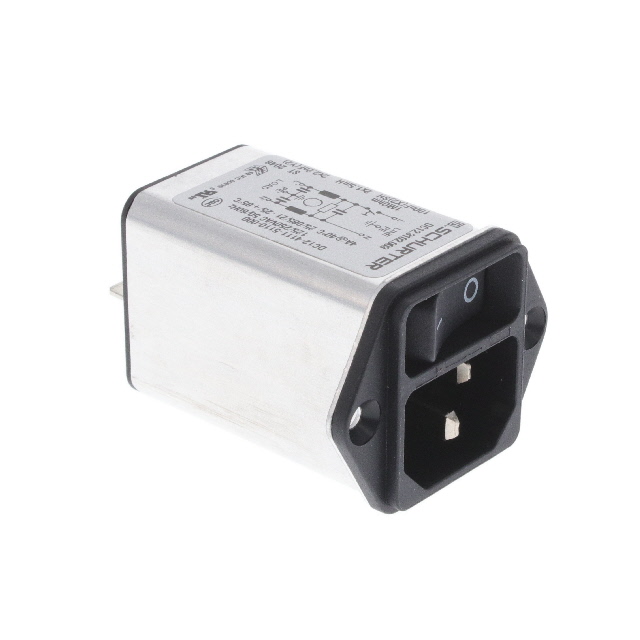

SCHURTER Inc. DC12.3102.003	IEC 320-C14	Receptacle Male Blades - Module	Shielded V-Lock Notch	10 A	Filtered (EMI RFI) - Commercial	IP40	Flange Panel Mount	Switch On-Off	CQC cULus ENEC	250 VAC	6.3 mm	Quick Connect	0.25 "	33.1 mm	29.1 mm	UL94 V-0	4 A

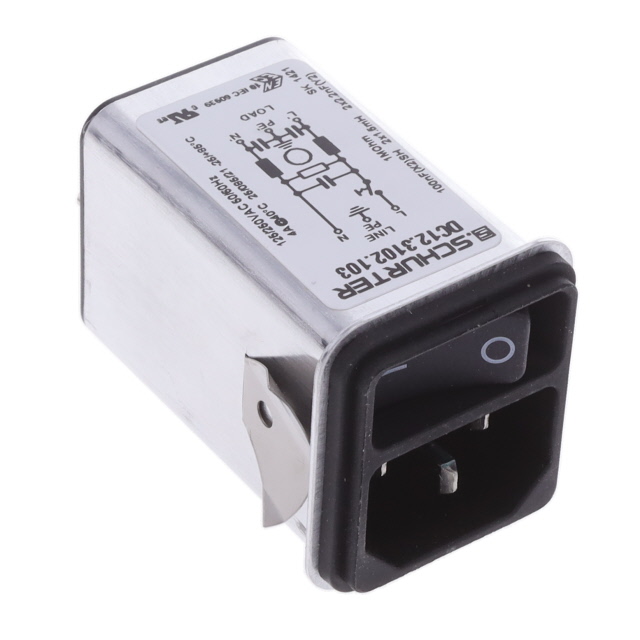

SCHURTER Inc. DC12.3102.103	IEC 320-C14	Receptacle Male Blades - Module	Shielded V-Lock Notch	10 A	Filtered (EMI RFI) - Commercial	IP40	Panel Mount Snap-In	Switch On-Off	CQC cULus ENEC	250 VAC	6.3 mm	Quick Connect	0.25 "	33.1 mm	29.4 mm	UL94 V-0	4 A	0.118 in	3 mm	1 mm	0.039 in
