DA9213-A Series

Multiphase 20A Output Current Sub-PMIC

Manufacturer: Renesas Electronics Corporation

Catalog

Multiphase 20A Output Current Sub-PMIC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Output Configuration	Package / Case	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Mounting Type	Output Type	Current - Output	Voltage - Input (Min) [Min]	Frequency - Switching	Number of Outputs	Topology	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Function
Renesas Electronics Corporation DA9213-XXFSC-AT	85 °C	-40 °C	5.5 V	Positive	66-VFBGA	0.3 V	4.3 V	Surface Mount	Adjustable (Programmable)	20 A	2.8 V	3 MHz	1	Buck	5.75	66-VFBGA	3.55	Step-Down
Renesas Electronics Corporation DA9213-XXFSC	85 °C	-40 °C	5.5 V	Positive	66-VFBGA	0.3 V	4.3 V	Surface Mount	Adjustable (Programmable)	20 A	2.8 V	3 MHz	1	Buck	5.75	66-VFBGA	3.55	Step-Down
Renesas Electronics Corporation DA9213-XXUP2	85 °C	-40 °C	5.5 V	Positive	66-UFBGA WLCSP	0.3 V	4.3 V	Surface Mount	Adjustable (Programmable)	20 A	2.8 V	3 MHz	1	Buck	4.53	66-WLCSP	2.51	Step-Down
Renesas Electronics Corporation DA9213-XXUP6	85 °C	-40 °C	5.5 V	Positive	66-UFBGA WLCSP	0.3 V	4.3 V	Surface Mount	Adjustable (Programmable)	20 A	2.8 V	3 MHz	1	Buck	4.53	66-WLCSP	2.51	Step-Down
Renesas Electronics Corporation DA9213-XXFSC-A	85 °C	-40 °C	5.5 V	Positive	66-VFBGA	0.3 V	4.3 V	Surface Mount	Adjustable (Programmable)	20 A	2.8 V	3 MHz	1	Buck	5.75	66-VFBGA	3.55	Step-Down

Catalog

Multiphase 20A Output Current Sub-PMIC

Description

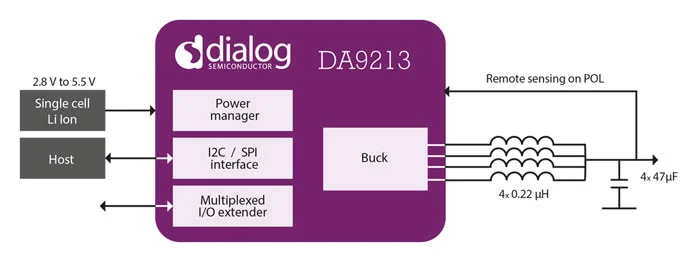

The DA9213-A is a synchronous 20A step-down converter supplying the processor's core or GPU rail in automotive infotainment and navigation system applications requiring high currents. DA9213-A is also suitable for powering FPGAs. The input voltage range of 2.8V to 5.5V makes it suitable for standard 5V supplies or USB power supplies. DA9213-A delivers 20A of output current, suitable for the highest performing application processors such as multicore arrangements of the Arm®Cortex®-A15/A57 family. Due to the multiphase topology, DA9213-A provides outstanding ±2% load transient response and component sizes below 1mm height.
