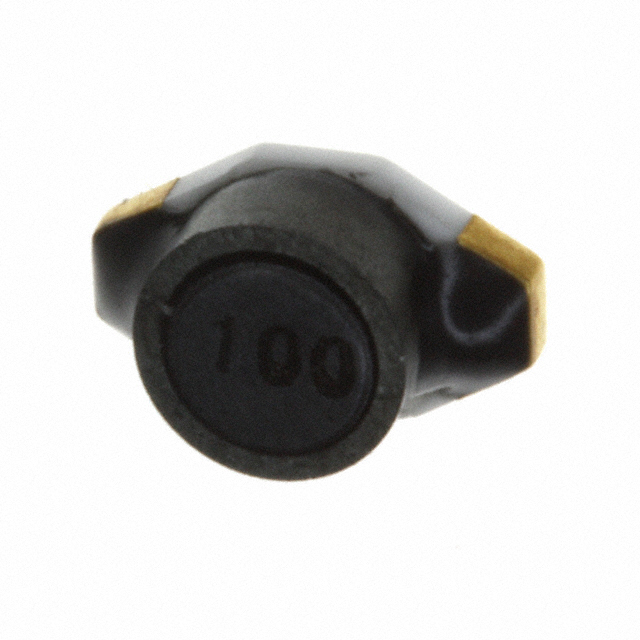

SDS680R Series

Manufacturer: Delevan

Catalog

FIXED IND 10UH 1A 0.075OHM SMD

Part	Material - Core	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Tolerance	Inductance Frequency - Test	Inductance	Type	Package / Case	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Delevan SDS680R-103M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	10 µH	Drum Core Wirewound	Nonstandard	38 MHz	85 °C	-40 C	1 A	75 mOhm
Delevan SDS680R-332M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	3.3 µH	Drum Core Wirewound	Nonstandard	120 MHz	85 °C	-40 C	1.6 A	55 mOhm
Delevan SDS680R-683M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	68 µH	Drum Core Wirewound	Nonstandard	15 MHz	85 °C	-40 C	400 mA		290 mOhm
Delevan SDS680R-222M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	2.2 µH	Drum Core Wirewound	Nonstandard	120 MHz	85 °C	-40 C	1.8 A	50 mOhm
Delevan SDS680R-225M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	2.2 mH	Drum Core Wirewound	Nonstandard	2 MHz	85 °C	-40 C	100 mA	8.5 Ohm
Delevan SDS680R-223M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	22 µH	Drum Core Wirewound	Nonstandard	25 MHz	85 °C	-40 C	700 mA		110 mOhm
Delevan SDS680R-682M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	6.8 µH	Drum Core Wirewound	Nonstandard	50 MHz	85 °C	-40 C	1.2 A	65 mOhm
Delevan SDS680R-152M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	1.5 µH	Drum Core Wirewound	Nonstandard	125 MHz	85 °C	-40 C	2.8 A	45 mOhm
Delevan SDS680R-155M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	1.5 mH	Drum Core Wirewound	Nonstandard	2 MHz	85 °C	-40 C	120 mA		4.2 Ohm
Delevan SDS680R-224M	Ferrite	Shielded	0.26 in	4.45 mm	0.175 "	6.6 mm	Surface Mount	20 %	100 kHz	220 µH	Drum Core Wirewound	Nonstandard	6 MHz	85 °C	-40 C	0.22 A		770 mOhm
