L77DFC37 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 37POS R/A SLDR

Part	Dielectric Material	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows [custom]	Connector Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Finish	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Flange Feature	Connector Style	Termination	Backset Spacing	Backset Spacing	Number of Positions	Features

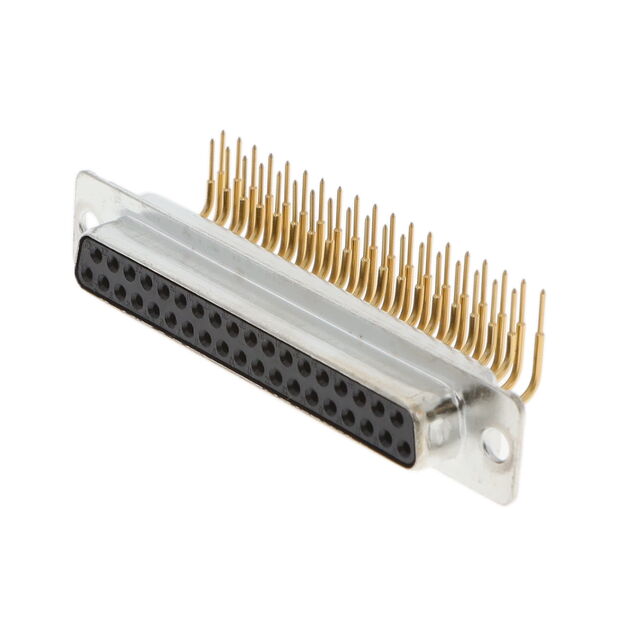

Amphenol ICC (Commercial Products) L77DFC37S1AON	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	10.3 mm	0.406 in	37
Amphenol ICC (Commercial Products) L77DFC37S	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub				37
Amphenol ICC (Commercial Products) L77DFC37SF179A	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Wire Wrap			37
Amphenol ICC (Commercial Products) L77DFC37S1AUN	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	10.3 mm	0.406 in	37	Mounting Brackets
Amphenol ICC (Commercial Products) L77DFC37S1ATN	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	10.3 mm	0.406 in	37	Mounting Brackets
Amphenol ICC (Commercial Products) L77DFC37P	Thermoplastic Glass Filled	Black	Brass	-55 C	155 C	300 VDC	2	Plug Male Pins	Panel Mount	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub				37	Grounding Indents
Amphenol ICC (Commercial Products) L77DFC37SU	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder			37
Amphenol ICC (Commercial Products) L77DFC37SF179	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	155 C	300 VDC	2	Receptacle Female Sockets	Panel Mount Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Wire Wrap			37
Amphenol ICC (Commercial Products) L77DFC37S1ATNRM6	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	10.3 mm	0.406 in	37	Board Lock Mounting Brackets
Amphenol ICC (Commercial Products) L77DFC37S1BMN	Thermoplastic Glass Filled	Black	Copper Alloy	-55 C	125 °C	300 VDC	2	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	UL94 V-0	20 µin	0.51 µm	7.5 A	Gold	Signal	4	DC C	Housing/Shell (Unthreaded)	D-Sub	Solder	10.3 mm	0.406 in	37	Mounting Brackets
