TPS62480 Series
Manufacturer: Texas Instruments
Beta
⌘K
TPS62480 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 1.8V TO 2.5V OUTPUT EVALUATION BOARD
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Contents | Main Purpose | Regulator Topology | Current - Output | Voltage - Output | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Output Configuration | Package / Case | Synchronous Rectifier | Voltage - Input (Max) [Max] | Mounting Type | Frequency - Switching | Voltage - Output (Max) [Max] | Voltage - Output (Min/Fixed) | Number of Outputs | Topology | Function | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | Board(s) | DC/DC Step Down | Buck | 6 A | 1.8 V 2.5 V | TPS62480 | 2.4 V | 5.5 V | ||||||||||||||||

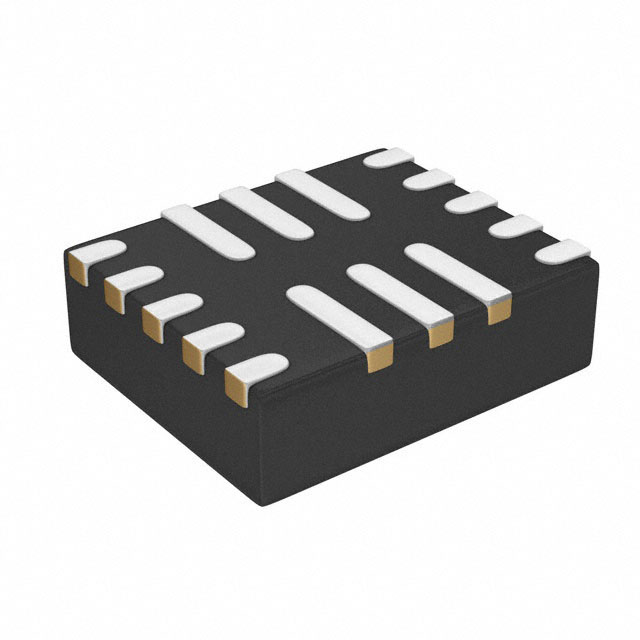

 Texas Instruments | 6 A | Positive | 16-VFQFN | 5.5 V | Surface Mount | 2.2 MHz | 5.5 V | 0.6 V | 2 | Buck | Step-Down | 2.4 V | -40 C | 125 °C | 16-VQFN (3x2.5) | Adjustable | ||||||||||||
Texas Instruments | 6 A | Positive | 16-VFQFN | 5.5 V | Surface Mount | 2.2 MHz | 5.5 V | 0.6 V | 2 | Buck | Step-Down | 2.4 V | -40 C | 125 °C | 16-VQFN (3x2.5) | Adjustable |
