GRL-4011 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPST 8A 125V
| Part | Mechanical Life | Electrical Life | Circuit | Features | Illumination Voltage (Nominal) | Color - Actuator/Cap | Switch Function | Actuator Marking | Actuator Type | Illumination Type, Color | Mounting Type | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | SPST | Terminal Barriers | 125 VAC | Almond | On-Off | No Marking | Concave (Curved) - Illuminated | Almond Neon | Panel Mount Snap-In | Quick Connect | 8 A | 125 V | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm |

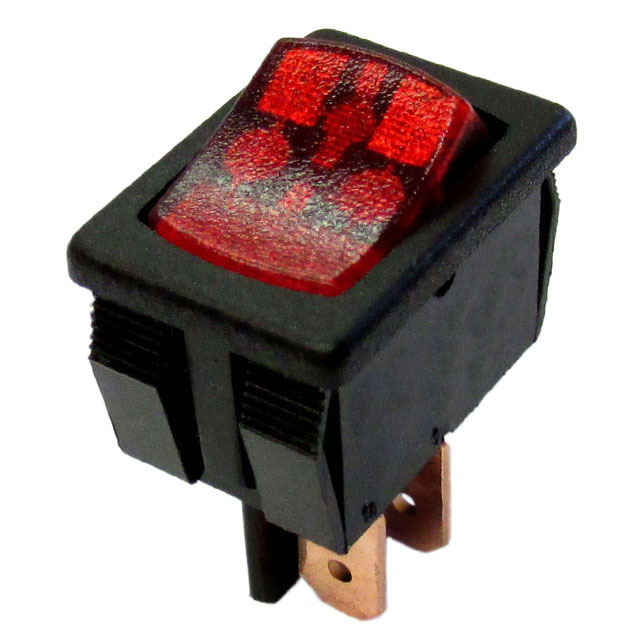

 CW Industries | 25000 Steps | 25000 Steps | SPST | Terminal Barriers | 125 VAC | Red | On-Off | No Marking | Concave (Curved) - Illuminated | Neon Red | Panel Mount Snap-In | Quick Connect | 8 A | 125 V | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm |
 CW Industries | 25000 Steps | 25000 Steps | SPST | Terminal Barriers | 28 VAC | Red | On-Off | No Marking | Concave (Curved) - Illuminated | Incandescent Red | Panel Mount Snap-In | Quick Connect | 8 A | 125 V | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm |
 CW Industries | 25000 Steps | 25000 Steps | SPST | Terminal Barriers | 125 VAC | Red | On-Off | No Marking | Concave (Curved) - Illuminated | Neon Red | Panel Mount Snap-In | Quick Connect | 13 A | 125 V | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm |
 CW Industries | 100000 Cycles | 25000 Steps | SPST | 125 VAC | Red | On-Off | No Marking | Concave (Curved) - Illuminated | Neon Red | Panel Mount Snap-In | Quick Connect | 16 A | 125 V | -20 ░C | 105 ░C | 12.9 mm | 19.2 mm |
