315-044 Series
Manufacturer: EDAC Inc.
Beta
⌘K

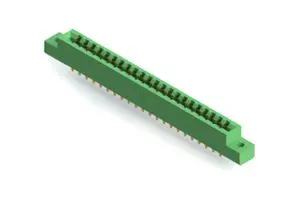

CONN EDGE DUAL FMALE 44POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Color | Gender | Mounting Type | Read Out | Number of Rows [custom] | Contact Material | Pitch | Pitch | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Number of Positions/Bay/Row | Flange Feature | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder Eyelet(s) | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Board Edge Straddle Mount | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | Flush Mount Top Opening Unthreaded | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Board Edge Straddle Mount | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | |||
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Board Edge Straddle Mount | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | Floating Bobbin Flush Mount | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 2.95 mm | 0.116 " |
 EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder Eyelet(s) | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount Through Hole | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | Flush Mount Top Opening Unthreaded | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount Through Hole | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount Through Hole | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | Floating Bobbin Flush Mount | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2.95 mm | 0.116 " | |
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount Through Hole | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
EDAC Inc. | 2 | Polyester Thermoplastic | Green | Female | Panel Mount Through Hole | Dual | 2 | Copper Alloy | 3.96 mm | 0.156 in | Solder | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Semi Bellows | Non Specified - Dual Edge | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 44 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
