7406-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

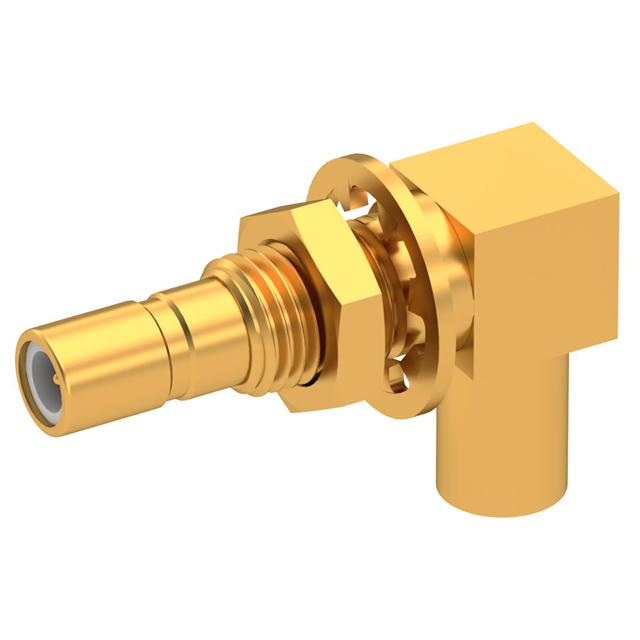

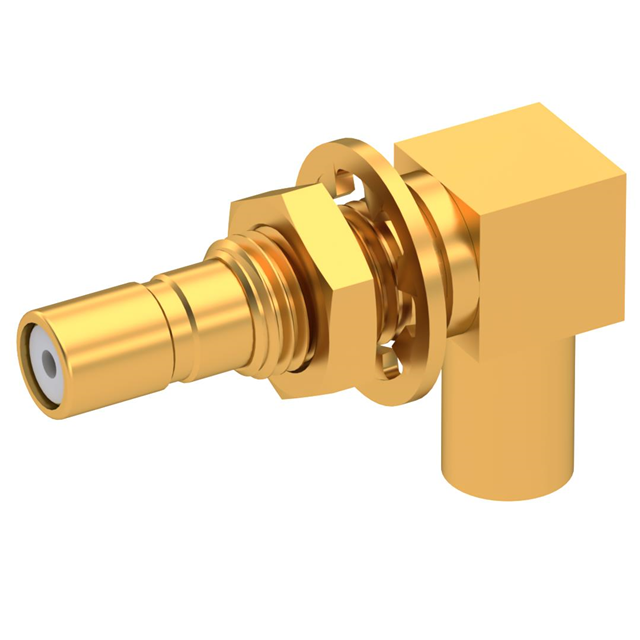

SSMB / RIGHT ANGLE JACK MALE CRI
| Part | Voltage Rating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Center Contact Plating | Housing Color | Impedance | Mounting Feature | Contact Termination | Frequency - Max [Max] | Connector Type | Mounting Type | Number of Ports | Connector Style | Fastening Type | Center Contact Material | Cable Group | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 500 | Gold | Gold | Gold | 50 Ohms | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | Jack Male Pin | Panel Mount Right Angle | 1 | SSMB | Snap-On | Beryllium Copper | RD-178 196 Double Braid | Crimp | |
 Radiall USA, Inc. | 250 V | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 500 | Gold | Gold | Gold | 50 Ohms | Bulkhead - Front Side Nut | Crimp | 12.4 GHz | Jack Male Pin | Panel Mount Right Angle | 1 | SSMB | Snap-On | Beryllium Copper | RG-178 | Crimp | 196 |
