572-002 Series

Manufacturer: EDAC Inc.

Catalog

CONN HEADER VERT 2POS 5.8MM

Part	Applications	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Mounting Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Style	Fastening Type	Termination	Insulation Material	Ingress Protection	Contact Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Shape	Insulation Color	Number of Positions	Number of Rows	Number of Positions Loaded	Note	Pitch	Pitch	Contact Termination	Color	Features

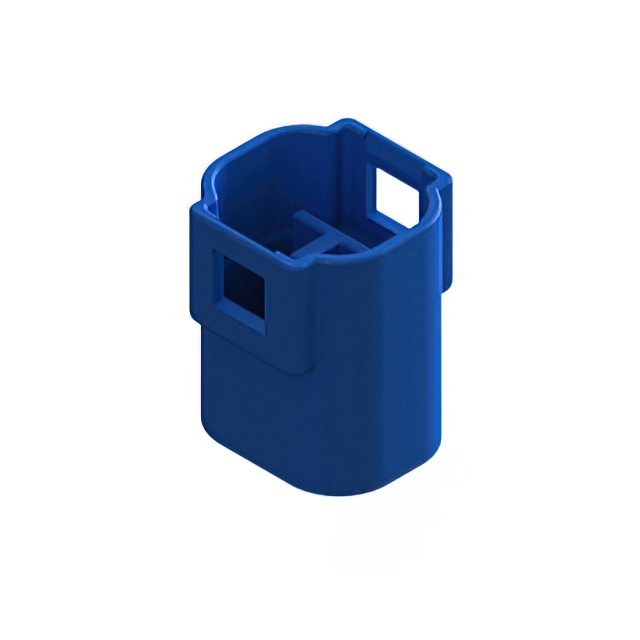

EDAC Inc. 572-002-420-301	Automotive General Purpose	10 A	UL94 V-0	-40 C	105 ░C	Brass	Header	Through Hole	Tin	19.5 mm	0.768 in	Board to Cable/Wire	Latch Holder	Solder	Polybutylene Terephthalate (PBT) Glass Filled	IP67	Male Pin	0.228 in	5.8 mm	Shrouded - 4 Wall	Circular	Blue	2	1	All

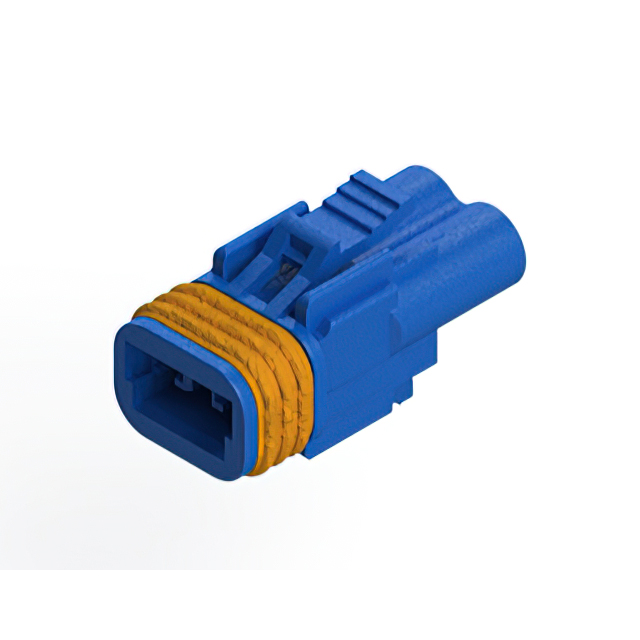

EDAC Inc. 572-002-000-400				-40 C	105 ░C		Receptacle	Free Hanging (In-Line)					Latch Lock		Polybutylene Terephthalate (PBT)		Female Socket						2	1		Contacts Not Included	0.228 in	5.8 mm	Crimp	Blue	Waterproof
EDAC Inc. 572-002-000-200				-40 C	105 ░C		Receptacle	Free Hanging (In-Line)					Latch Lock		Polybutylene Terephthalate (PBT)		Female Socket						2	1		Contacts Not Included	0.228 in	5.8 mm	Crimp	White	Waterproof
