0462-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Socket Depth [z]	Socket Depth [z]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall	Length - Overall	Termination	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Accepts Pin Diameter [Max]

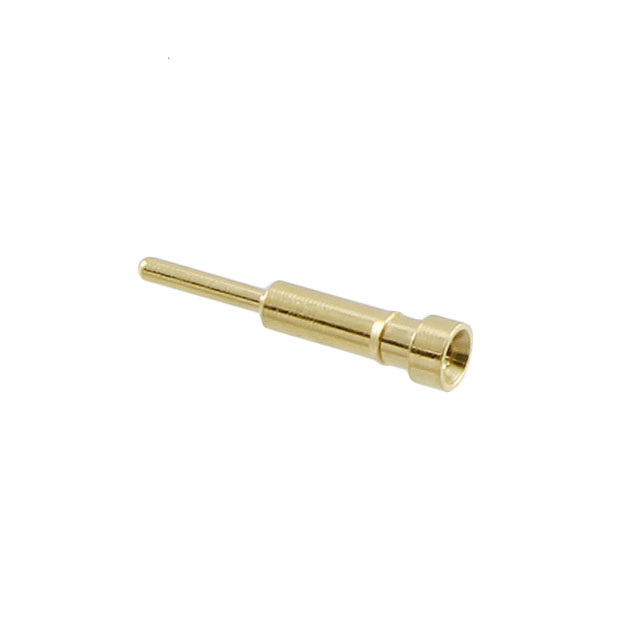

Mill-Max Manufacturing Corp. 0462-0-15-15-21-27-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-80-21-27-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper

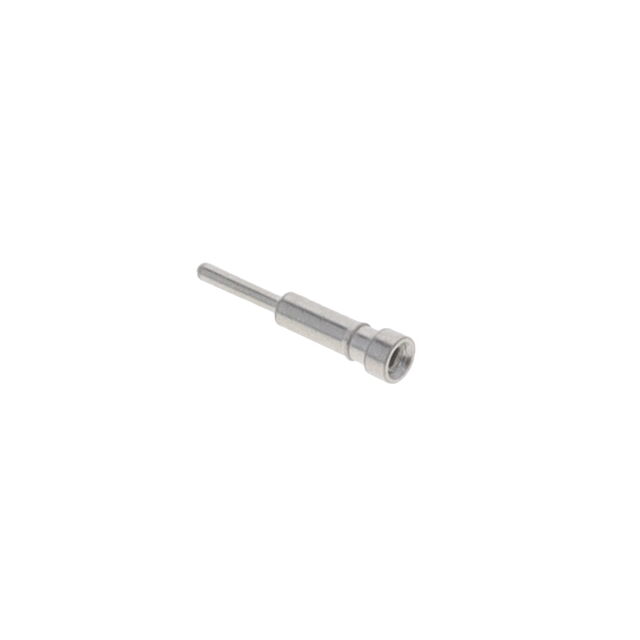

Mill-Max Manufacturing Corp. 0462-0-15-80-21-84-04-0	-55 C	125 °C	0.031 in	0.79 mm	Tin	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	100 µin	2.54 µm	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper

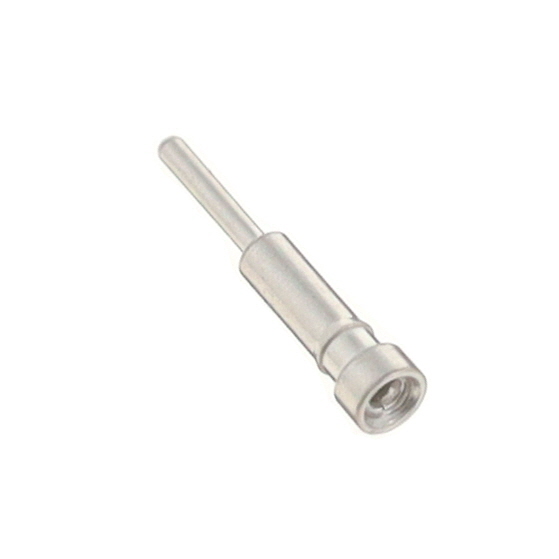

Mill-Max Manufacturing Corp. 0462-0-15-80-11-84-04-0	-55 C	125 °C	0.031 in	0.79 mm	Tin	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	100 µin	2.54 µm	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-80-21-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-01-11-02-04-0	-55 C	125 °C	0.031 in	0.79 mm	Tin-Lead	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.02 in	0.015 "		0.29 in	7.37 mm	Press-Fit	100 µin	2.54 µm	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper	0.51 mm
Mill-Max Manufacturing Corp. 0462-0-15-01-21-27-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	30 Áin	0.76 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-15-21-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-80-11-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0462-0-15-15-11-14-04-0	-55 C	125 °C	0.031 in	0.79 mm	Gold	3.81 mm	0.15 in	1.4 mm	0.055 in	0.38 mm	0.022 in	0.015 "	0.56 mm	0.29 in	7.37 mm	Press-Fit	10 Áin	0.25 Ám	Standard Tail	0.043 in	1.09 mm	0.51 mm	0.02 in	Beryllium Copper
