CSPESD304 Series

4-Channel ESD Protection Array

Catalog

4-Channel ESD Protection Array

Part	Package / Case	Type	Unidirectional Channels [custom]	Power Line Protection	Voltage - Breakdown (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Applications

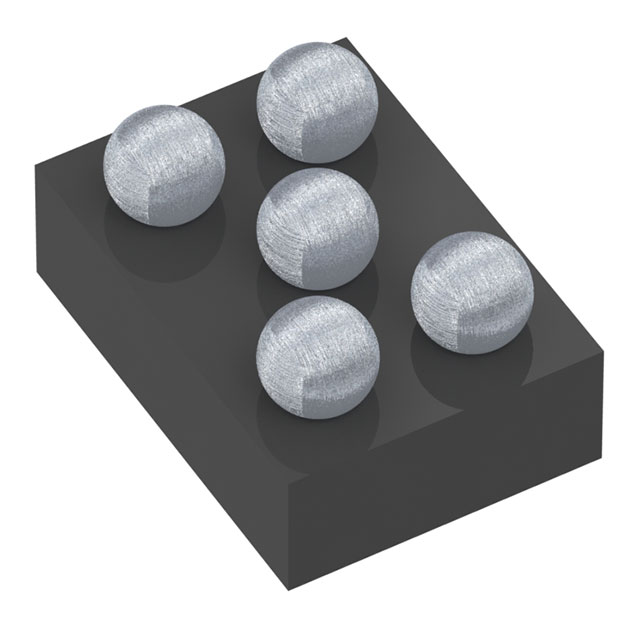

ON Semiconductor CSPESD304G	5-UFBGA WLCSP	Zener	4		5.5 V	85 °C	-40 °C	15 V	General Purpose
ON Semiconductor CSPESD304G-HST	5-UFBGA WLCSP	Zener	4		5.5 V	85 °C	-40 °C	15 V	General Purpose

Catalog

4-Channel ESD Protection Array

Key Features

• Four channels of ESD protection

• ±15kV ESD protection on each channel (IEC 61000-4-2 Level 4, contact discharge). 30kV ESD protection on each channel (HBM)

• Chip Scale Package features extremely low lead inductance for optimum ESD protection

Description

The CSPESD304 is a quad ESD transient voltage supression diode array. Each diode provides a very high level of protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD). These diodes safely dissipate ESD strikes of ±15kV, exceeding the maximum requirement of the IEC 61000-4-2 international standard. Using the MIL-STD-883 (Method 3015) specification for Human Body Model (HBM) ESD, the device provides protection for contact discharges to greater than ±30kV.
