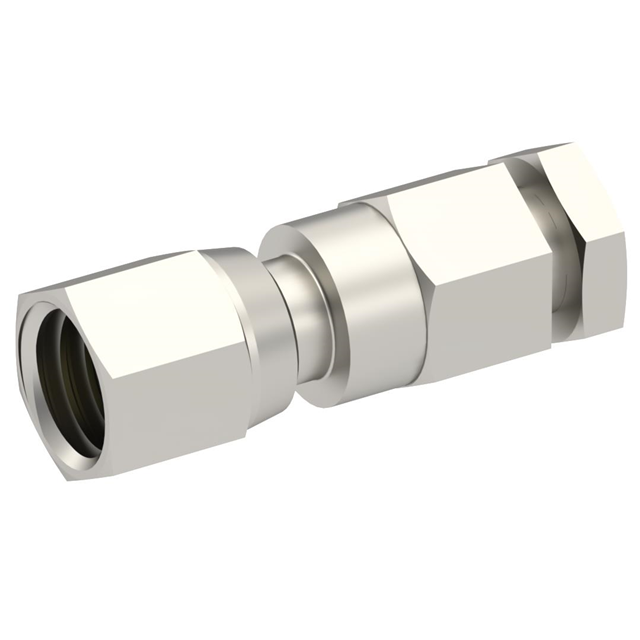

1002-7541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC F STR NA SDCL .086
| Part | Insertion Loss | Mating Cycles | Body Material | Body Finish | Dielectric Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Number of Ports | Frequency - Max [Max] | Connector Style | Shield Termination | Fastening Type | Mounting Type | Impedance | Connector Type | Housing Color | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.25 dB | 500 | Brass | Gold | Polytetrafluoroethylene (PTFE) | Gold | 105 ░C | -65 ░C | RG-405 (.085" Semi Rigid) | 1 | 10 GHz | SMC | Clamp | Threaded | Free Hanging (In-Line) | 50 Ohms | Female Socket Plug | Gold | Beryllium Copper | Solder |
