053325 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER R/A 2POS 2MM
| Part | Contact Shape | Shrouding | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Material Flammability Rating | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Contact Type | Number of Positions Loaded | Fastening Type | Style | Mounting Type | Insulation Height | Insulation Height | Insulation Color | Termination | Connector Type | Insulation Material | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

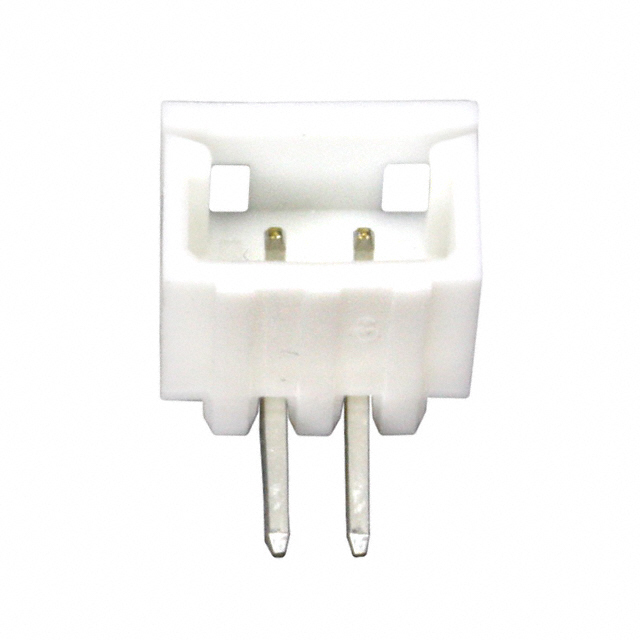

 Molex | Square | Shrouded - 4 Wall | 0.136 in | 3.45 mm | Tin | UL94 V-0 | 0.079 in | 2 mm | 2 | Male Pin | All | Detent Lock | Board to Cable/Wire | Through Hole Right Angle | 0.191 in | 4.85 mm | Natural | Kinked Pin Solder | Header | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 3.5 mm | 0.138 in | Brass |

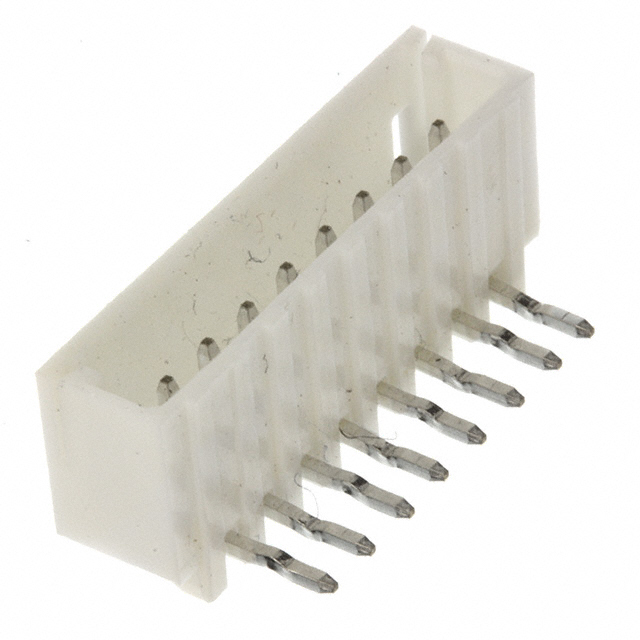

 Molex | Square | Shrouded - 4 Wall | 0.136 in | 3.45 mm | Tin | UL94 V-0 | 0.079 in | 2 mm | 8 | Male Pin | All | Detent Lock | Board to Cable/Wire | Through Hole Right Angle | 0.191 in | 4.85 mm | Natural | Kinked Pin Solder | Header | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 3.5 mm | 0.138 in | Brass |

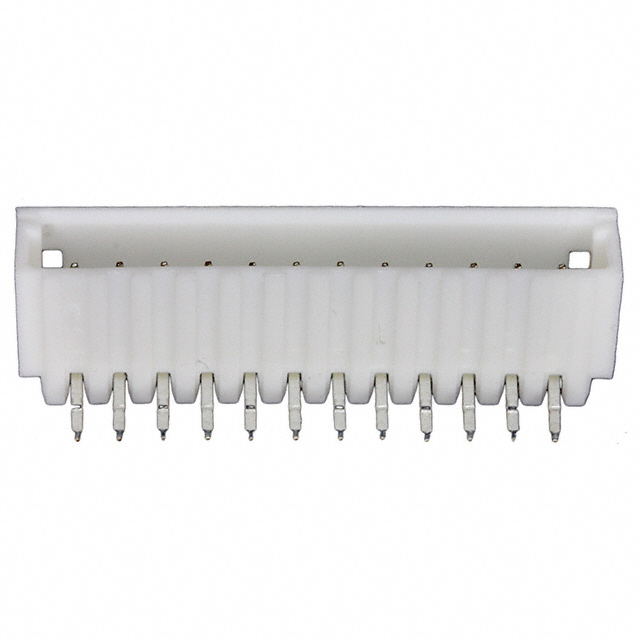

 Molex | Square | Shrouded - 4 Wall | 0.136 in | 3.45 mm | Tin | UL94 V-0 | 0.079 in | 2 mm | 12 | Male Pin | All | Detent Lock | Board to Cable/Wire | Through Hole Right Angle | 0.191 in | 4.85 mm | Natural | Kinked Pin Solder | Header | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 3.5 mm | 0.138 in | Brass |

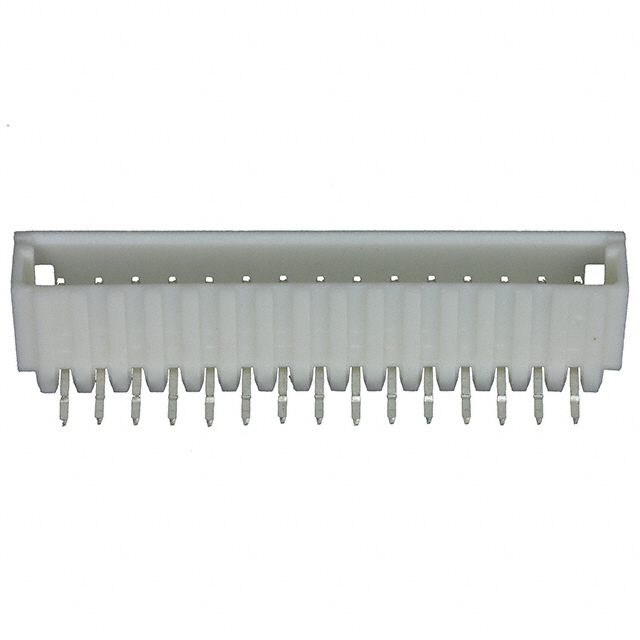

 Molex | Square | Shrouded - 4 Wall | 0.136 in | 3.45 mm | Tin | UL94 V-0 | 0.079 in | 2 mm | 15 | Male Pin | All | Detent Lock | Board to Cable/Wire | Through Hole Right Angle | 0.191 in | 4.85 mm | Natural | Kinked Pin Solder | Header | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 3.5 mm | 0.138 in | Brass |

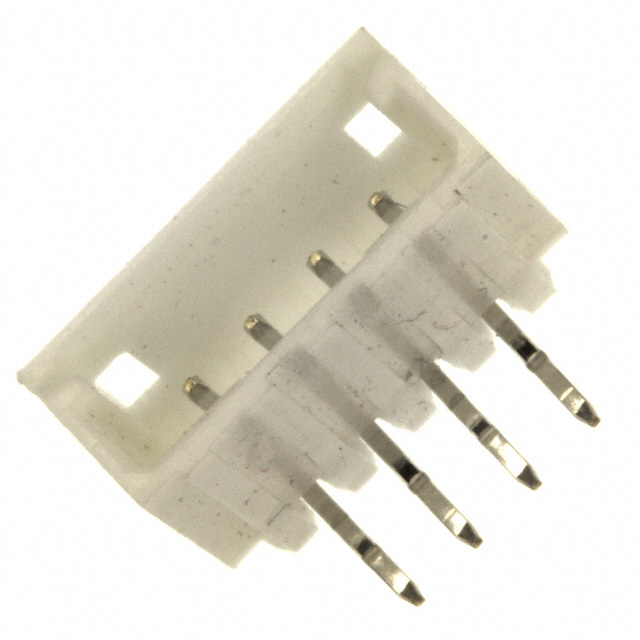

 Molex | Square | Shrouded - 4 Wall | 0.136 in | 3.45 mm | Tin | UL94 V-0 | 0.079 in | 2 mm | 4 | Male Pin | All | Detent Lock | Board to Cable/Wire | Through Hole Right Angle | 0.191 in | 4.85 mm | Natural | Kinked Pin Solder | Header | Polybutylene Terephthalate (PBT) Glass Filled | 1 | 3.5 mm | 0.138 in | Brass |
