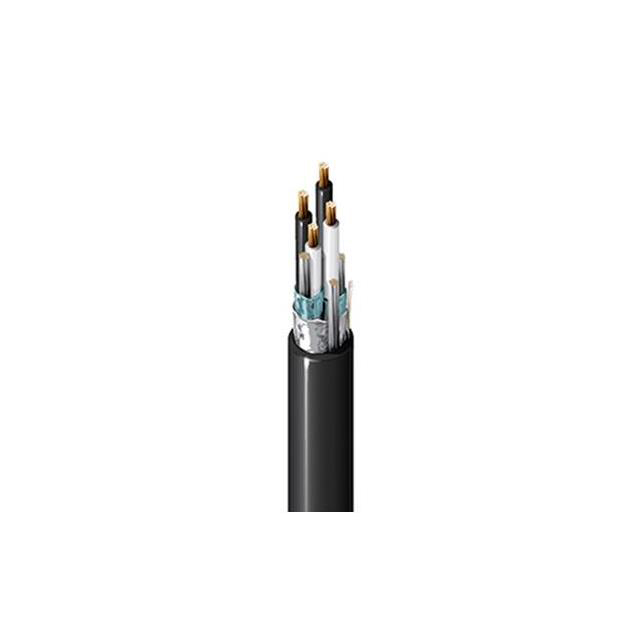

6541PA Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4CON 22AWG GRAY
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Voltage | Usage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Length | Length | Ratings | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Conductor Material | Shield Type | Number of Conductors | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 5.44 mm | 0.214 in | Plenum Polyvinylidene Fluoride (PVDF) | 300 VDC | Security Sound | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | UL Style CMP | 22 AWG | 30 AWG | 7 | Drain Wire Rip Cord | Gray | Copper Bare | Foil | 4 | Fluorinated Ethylene-Propylene (FEP) | 150 °C | -20 ░C | Multi-Pair |
Belden Inc. | 100 % | Aluminum | 5.44 mm | 0.214 in | Plenum Polyvinylidene Fluoride (PVDF) | 300 VDC | Security Sound | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | UL Style CMP | 22 AWG | 30 AWG | 7 | Drain Wire Rip Cord | Gray | Copper Bare | Foil | 4 | Fluorinated Ethylene-Propylene (FEP) | 150 °C | -20 ░C | Multi-Pair |
