9919 Series

Catalog

HOOK-UP STRND 20AWG GRY

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Ratings	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Voltage	Length [x]	Length [x]
Belden Inc. 9919 0081000	0.41 mm	0.016 in	304.8 m	1000 ft	UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Gray	300 VDC
Belden Inc. 9919 0131000	0.41 mm	0.016 in	304.8 m	1000 ft	UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Blue	300 VDC

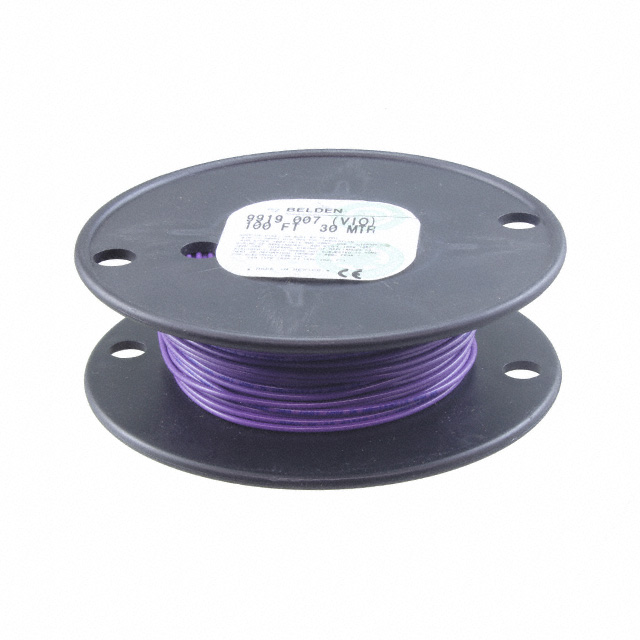

Belden Inc. 9919 007100	0.41 mm	0.016 in			UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Violet	300 VDC	100 ft	30.5 m
Belden Inc. 9919 001100	0.41 mm	0.016 in			UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Brown	300 VDC	100 ft	30.5 m
Belden Inc. 9919 009100	0.41 mm	0.016 in			UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	White	300 VDC	100 ft	30.5 m

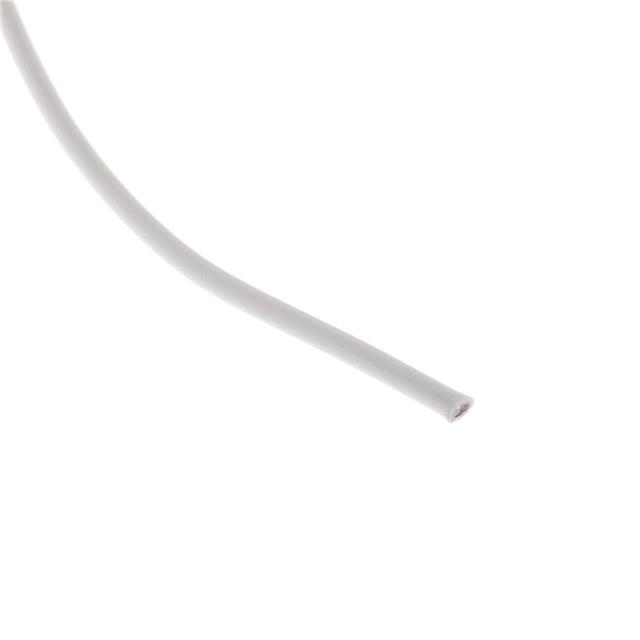

Belden Inc. 9919 0091000	0.41 mm	0.016 in	304.8 m	1000 ft	UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	White	300 VDC
Belden Inc. 9919 002100	0.41 mm	0.016 in			UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Red	300 VDC	100 ft	30.5 m
Belden Inc. 9919 013100	0.41 mm	0.016 in			UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Blue	300 VDC	100 ft	30.5 m
Belden Inc. 9919 0011000	0.41 mm	0.016 in	304.8 m	1000 ft	UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Brown	300 VDC
Belden Inc. 9919 0051000	0.41 mm	0.016 in	304.8 m	1000 ft	UL Style 1007/1569	Hook-Up	Copper Tinned	28 AWG	7	20 AWG	Poly-Vinyl Chloride (PVC)	0.069 "	1.75 mm	Green	300 VDC
