LME49710 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUDIO AMP SPEAKER 1-CH MONO CLASS-AB 8-PIN SOIC T/R
| Part | Slew Rate | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Supply Span (Max) [Max] | Number of Circuits | Current - Input Bias | Amplifier Type | Voltage - Input Offset | Mounting Type | Current - Supply | Voltage - Supply Span (Min) [Min] | Gain Bandwidth Product | Package / Case | Package / Case [y] | Package / Case [x] | Utilized IC / Part | Board Type | Supplied Contents | Output Type | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Current - Supply (Main IC) | Channels per IC | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 20 V/çs | 85 °C | -40 °C | 8-SOIC | 34 V | 1 | 7 nA | Audio | 50 µV | Surface Mount | 4.8 mA | 5 V | 55 MHz | 8-SOIC | 3.9 mm | 0.154 in | ||||||||||

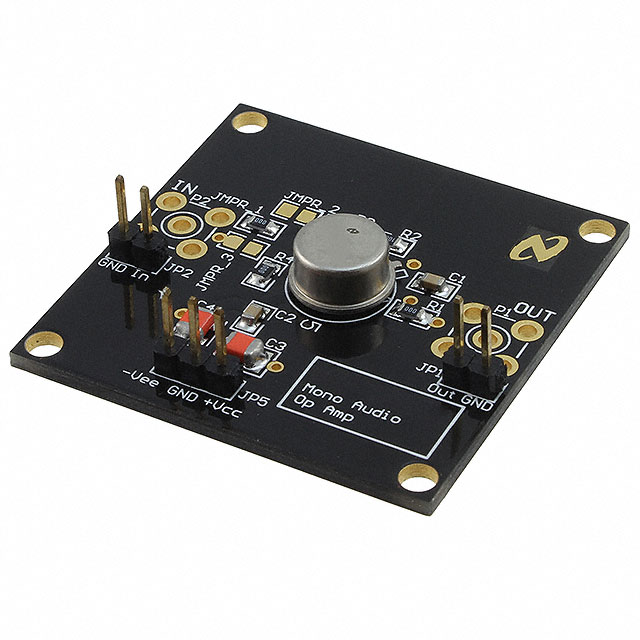

 Texas Instruments | 20 V/çs | Audio | LME49710 | Fully Populated | Board(s) | Single-Ended | 17 V | -2.5 V | 4.8 mA | 1 - Single | ||||||||||||||||

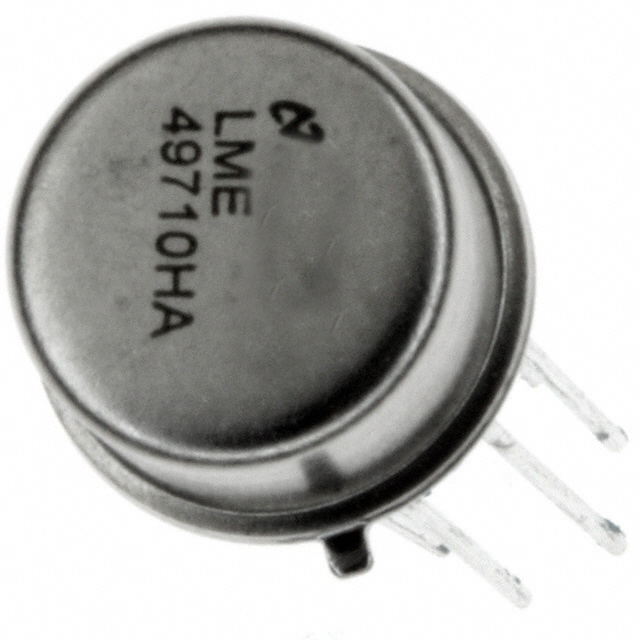

 Texas Instruments | 20 V/çs | 85 °C | -40 °C | TO-99-8 | 34 V | 1 | 7 nA | Audio | 50 µV | Through Hole | 4.8 mA | 5 V | 55 MHz | TO-99-8 Metal Can | ||||||||||||
 Texas Instruments | 20 V/çs | Audio | LME49710 | Fully Populated | Board(s) | Single-Ended | 17 V | -2.5 V | 4.8 mA | 1 - Single | ||||||||||||||||
 Texas Instruments | 20 V/çs | 85 °C | -40 °C | 8-PDIP | 34 V | 1 | 7 nA | Audio | 50 µV | Through Hole | 4.8 mA | 5 V | 55 MHz | 8-DIP | 0.3 in | 7.62 mm |
