5506FE Series
Manufacturer: Belden Inc.
Beta
⌘K

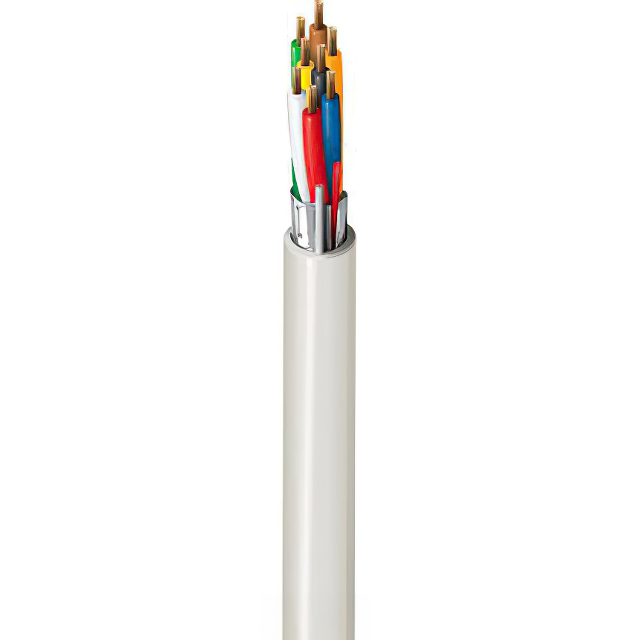

CABLE 8CON 22AWG GRAY SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Voltage | Jacket Color | Features | Length | Length | Shield Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Number of Conductors [custom] | Jacket (Insulation) Material | Cable Type | Wire Gauge | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Polypropylene (PP) | 300 VDC | Gray | Drain Wire Rip Cord | 304.8 m | 1000 ft | Foil | Copper Bare | 0.187 in | 4.75 mm | 30 AWG | 7 | 0.018 in | 0.457 mm | UL Style CMR | 8 | Poly-Vinyl Chloride (PVC) Riser | Multi-Conductor | 22 AWG | Security Sound |
 Belden Inc. | 100 % | Aluminum | Polypropylene (PP) | Gray | Drain Wire Rip Cord | 152.4 m | 500 ft | Foil | Copper Bare | 0.187 in | 4.75 mm | 30 AWG | 7 | 0.018 in | 0.457 mm | UL Style CMR | 8 | Poly-Vinyl Chloride (PVC) Riser | Multi-Conductor | 22 AWG | Alarm Security Sound |
