SDF-R25 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS 25 PIN R/A SOLDER M FLASH 4-40 INT THRD
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Shell Material, Finish | Connector Style | Mounting Type | Connector Type | Contact Type | Termination | Number of Rows [custom] | Ingress Protection | Contact Finish Thickness | Flange Feature | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Positions | Current Rating (Amps) | Contact Finish | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

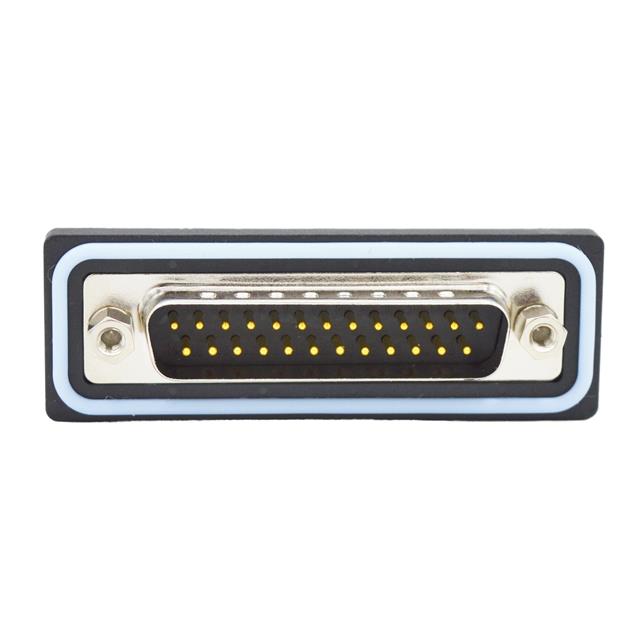

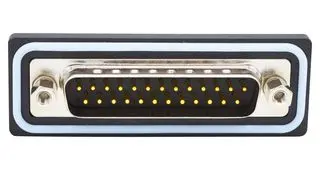

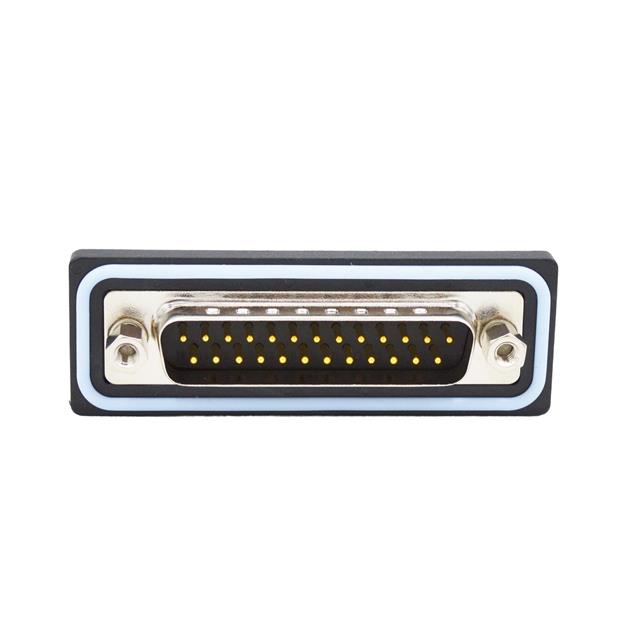

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Plug Male Pins | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | Flash | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | Grounding Indents | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Plug Male Pins | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | Flash | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | Board Lock Grounding Indents Mounting Brackets | ||

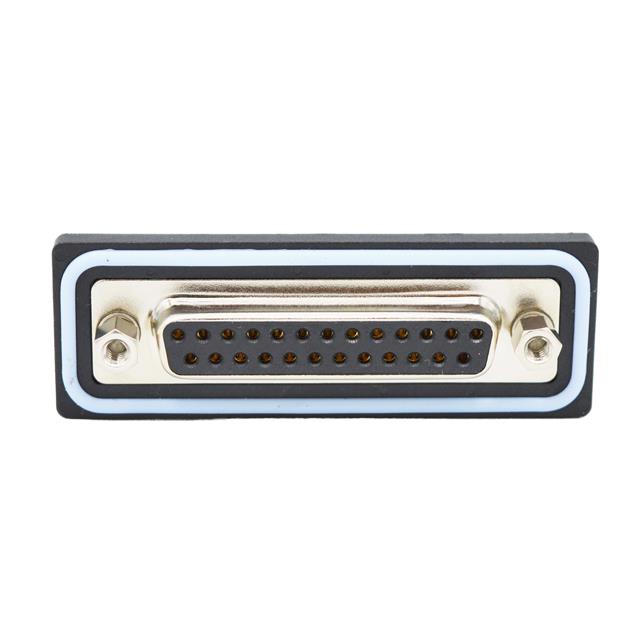

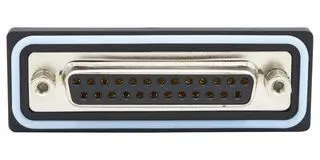

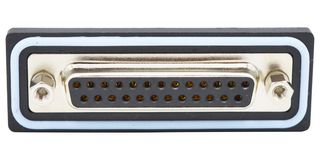

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | Flash | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Plug Male Pins | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | Grounding Indents | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | Board Lock Mounting Brackets | 30 Áin | 0.76 Ám | |
NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Brass | Black | Nickel Plated Steel | D-Sub | Panel Mount Right Angle Through Hole | Plug Male Pins | Signal | Solder | 2 | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | UL94 V-0 | B DB | 3 | 25 | 5 A | Gold | Board Lock Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám |
