PE0S Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Mounting Type	Approval Agency	Current Rating - Filter	Connector Style	Filter Type	Current Rating - Appliance Inlet	Termination	Termination	Termination	Switch Features	Features	Panel Cutout Dimensions	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]

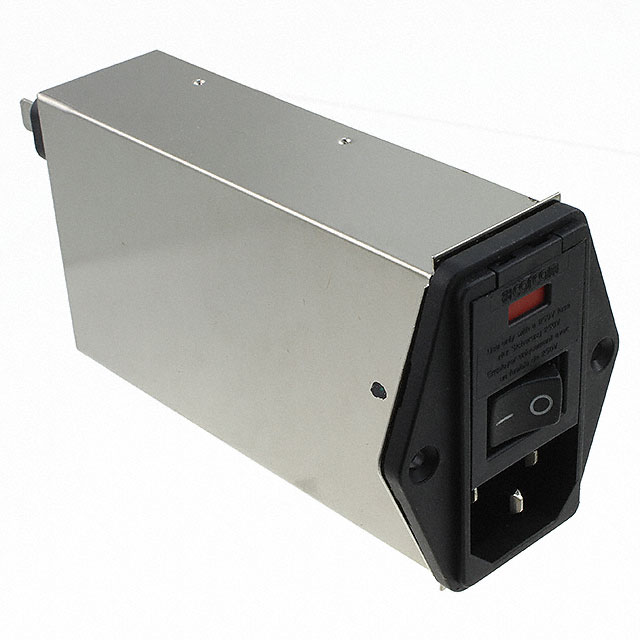

TE Connectivity Corcom Filters PE0S0DZ6C	Receptacle Male Blades - Module	120 VAC	55.91 mm	29.21 mm	Twin Fused	Flange Panel Mount	CSA UL VDE	6 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	6 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off

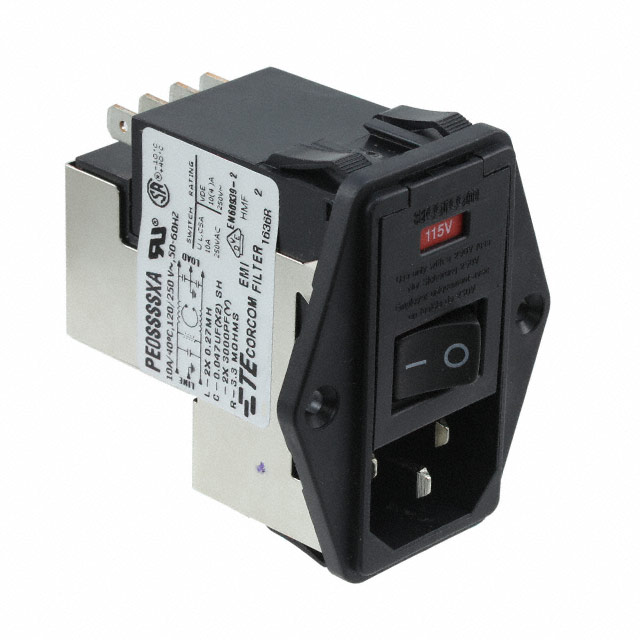

TE Connectivity Corcom Filters PE0SSSSXA	Receptacle Male Blades - Module	120 VAC			Fuse Holder	Flange Panel Mount	CSA UL VDE	10 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	10 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Conversion Clip Shielded Voltage Selector	Variable Size	0.79 mm	0.079 "	0.031 "	2 mm

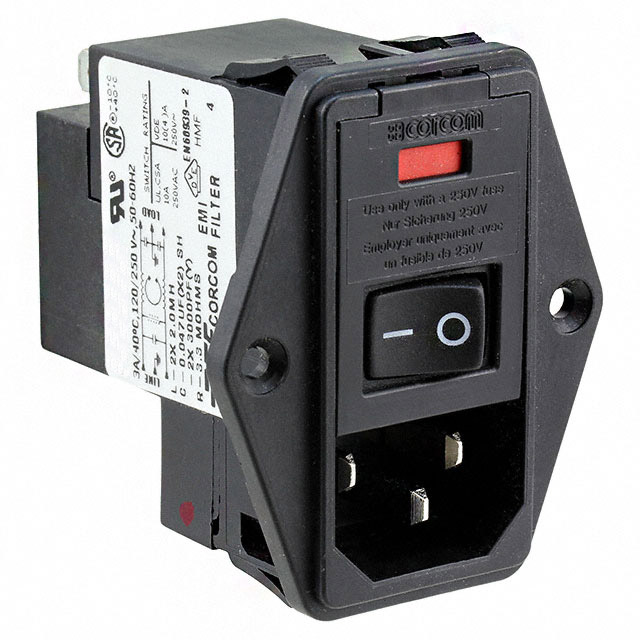

TE Connectivity Corcom Filters PE0S0DS30	Receptacle Male Blades - Module	120 VAC			Twin Fused	Flange Panel Mount	CSA UL VDE	3 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	3 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off		Variable Size	0.79 mm	0.114 in	0.031 "	2.9 mm
