32050 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

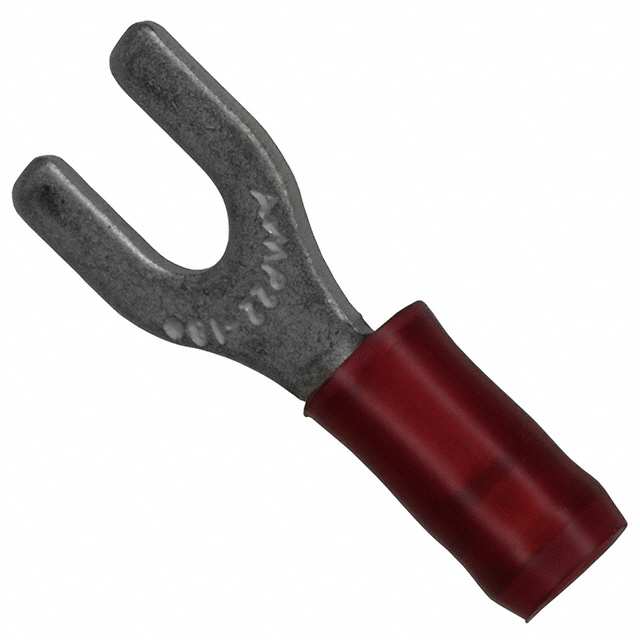

CONN SPADE TERM 16-22AWG #8 RED
| Part | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Ring Center to Termination | Length - Ring Center to Termination [x] | Features | Termination | Length - Overall [x] | Length - Overall | Length - Termination | Length - Termination | Color | Contact Material | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Stud/Tab Size | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Material - Insulation | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.375 in | 9.53 mm | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 7.92 mm | 0.312 in | Serrated Termination | Crimp | 0.908 " | 23.06 mm | 0.404 " | 10.26 mm | Red | Copper | Standard | 22 AWG | 16 AWG | Insulated | 8 Stud | 0.171 in | 4.34 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Tin |
