B3W Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

...

Part	Switch Travel	Mechanical Life	Outline [y]	Outline [x]	Contact Rating @ Voltage	Actuator Orientation	Illumination Type, Color	Operating Force	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Illumination	Mounting Type	Features	Illumination Voltage (Nominal)	Actuator Type	Actuator Height off PCB, Vertical	Switch Function	Actuator Height off PCB, Vertical [z]	Ingress Protection
Omron Electronics Inc-EMC Div B3W-9010-G2G	0.25 mm	1000000 Cycles	12 mm	12 mm	0.05 A 24 VDC	Top Actuated	Green LED	160 gf	SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	2.1 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-9012-R2R	0.25 mm	300000 Cycles	12 mm	12 mm	0.05 A 24 VDC	Top Actuated	LED Red		SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	1.8 VDC	Square Button	10.2 mm	Off-Mom

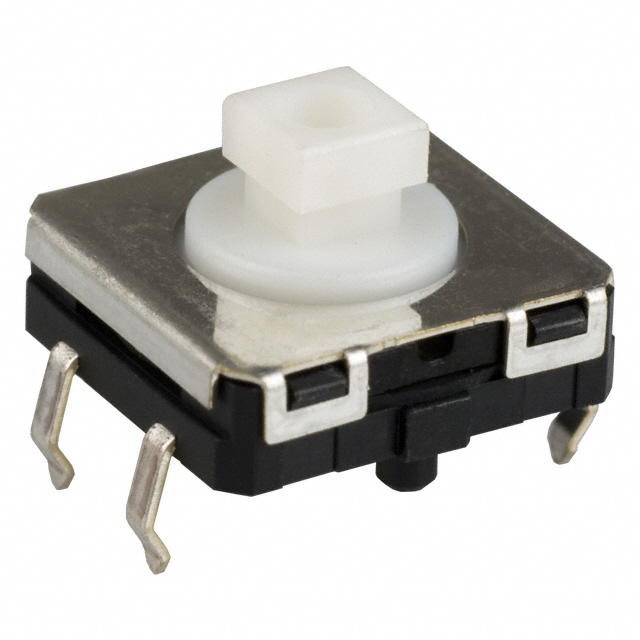

Omron Electronics Inc-EMC Div B3W-4050		3000000 Cycles	12 mm	12 mm	0.05 A 24 VDC	Top Actuated		0.2 kgf	SPST-NO	-25 °C	70 °C	PC Pin	Non-Illuminated	Through Hole			Plunger for Cap		Off-Mom	7.3 mm	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div B3W-9000-Y2Y	0.25 mm	1000000 Cycles	10 mm	10 mm	0.05 A 24 VDC	Top Actuated	LED Yellow	160 gf	SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	2.4 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-9000-Y2C	0.25 mm	1000000 Cycles	10 mm	10 mm	0.05 A 24 VDC	Top Actuated	LED Yellow	160 gf	SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	2.4 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-9010-Y2N	0.25 mm	1000000 Cycles	12 mm	12 mm	0.05 A 24 VDC	Top Actuated	LED Yellow	160 gf	SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	2.4 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-9002-B1B	0.25 mm	300000 Cycles	10 mm	10 mm	0.05 A 24 VDC	Top Actuated	Blue LED		SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	3.7 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-9002-B2C	0.25 mm	300000 Cycles	10 mm	10 mm	0.05 A 24 VDC	Top Actuated	Blue LED		SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	3.7 VDC	Square Button	10.2 mm	Off-Mom

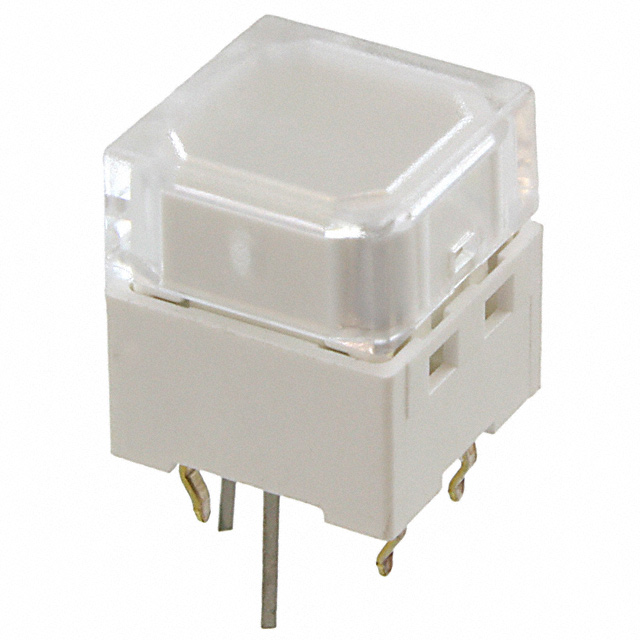

Omron Electronics Inc-EMC Div B3W-9002-HG2C	0.25 mm	300000 Cycles	10 mm	10 mm	0.05 A 24 VDC	Top Actuated	Green LED		SPST-NO	-25 °C	70 °C	PC Pin	Illuminated	Through Hole	Sealed - Fully	3.7 VDC	Square Button	10.2 mm	Off-Mom
Omron Electronics Inc-EMC Div B3W-4055S		1000000 Cycles	12 mm	12 mm	0.05 A 24 VDC	Top Actuated		350 gf	SPST-NO	-25 °C	70 °C	PC Pin	Non-Illuminated	Through Hole			Plunger for Cap		Off-Mom	7.3 mm	IP67 - Dust Tight Waterproof
