207541 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

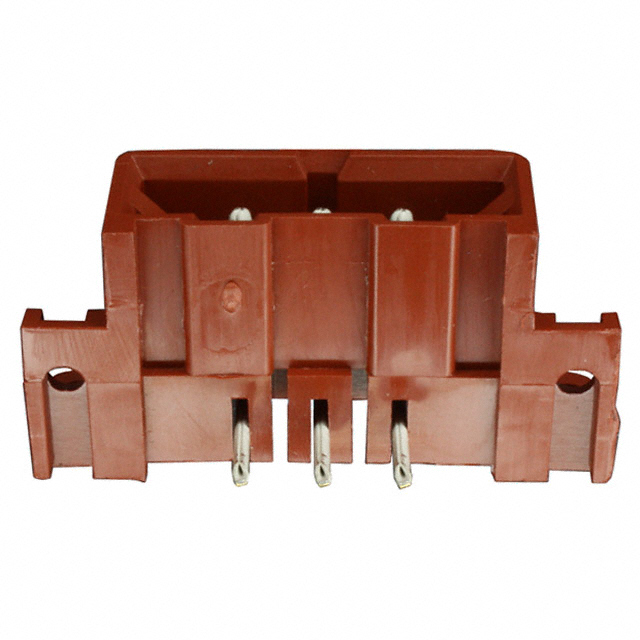

MMATE PIN HEADER ASSY,3P LF
| Part | Contact Type | Insulation Material | Number of Positions Loaded | Contact Shape | Material Flammability Rating | Insulation Color | Insulation Height | Insulation Height | Features | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Material | Connector Type | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Post | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Mounting Type | Applications | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin | Nylon Polyamide (PA) | All | Circular | UL94 V-0 | Black Red | 0.5 in | 12.7 mm | Mounting Flange | 7.5 A | 4.88 mm | 0.192 in | 130 °C | -55 °C | Latch Holder | Brass | Header | 5 mm | 0.197 " | Shrouded - 4 Wall | Tin | Board to Board Cable | 150 Áin | 3.81 Ám | 150 Áin | 3.81 Ám | 1 | Through Hole Right Angle | Automotive General Purpose Industrial | Solder | 600 V |
