6411 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

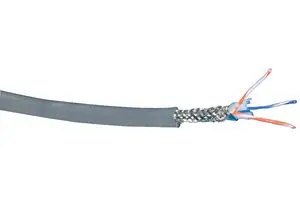

MULTIPAIR CABLE, SHIELDED, 25 PAIR, 24 AWG, 0.23 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Number of Conductors | Length | Length | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Ratings | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Features | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 50 | 304.8 m | 1000 ft | Copper Tinned | 24 AWG | 17.04 mm | 0.671 in | 7 | 32 AWG | 300 VDC | UL Style 2919 | Braid Foil | Poly-Vinyl Chloride (PVC) | Polyethylene (PE) | 1.194 mm | 0.047 in | 80 °C | -20 ░C | Slate | Drain Wire | Multi-Pair |
