1825160 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

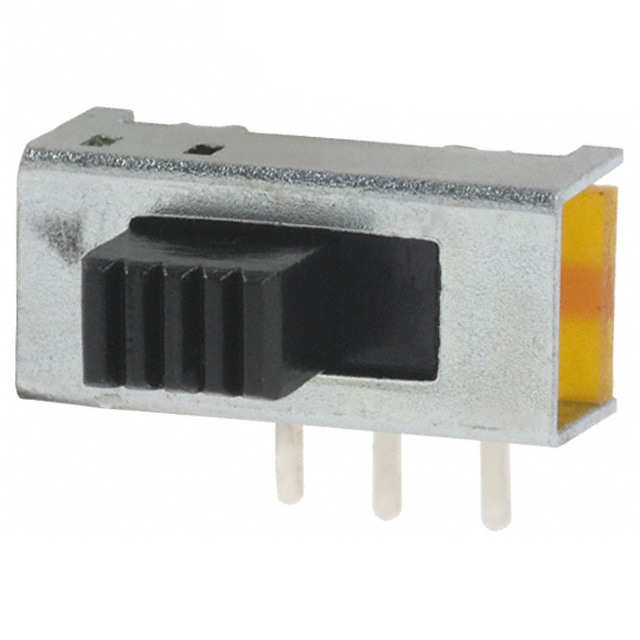

SWITCH SLIDE SPDT 300MA 125V
| Part | Termination Style | Mounting Type | Actuator Length [x] | Features | Actuator Material | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Switch Travel | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Contact Finish | Contact Timing | Mechanical Life | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | PC Pin | Through Hole Right Angle | 4 mm | Epoxy Sealed Terminals | Polyoxymethylene (Acetal) (POM) | 0.25 kgf | -10 °C | 60 °C | 2.5 mm | SPDT | On-On | 300 mA | 125 V | Standard | Silver | Shorting | 10000 Steps | Copper Alloy |
