206934 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT MALE 37POS GOLD SOLDER

Part	Mounting Type	Connector Type	Contact Material	Termination	Material Flammability Rating	Orientation	Contact Finish - Mating	Voltage Rating	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Number of Positions	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shielding
TE Connectivity Raychem Cable Protection 1-206934-7	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold PdNi +Gold	250 VAC	Black	30 Áin	0.76 Ám	Flange	37	Plastic	105 ░C	-55 °C	23	37

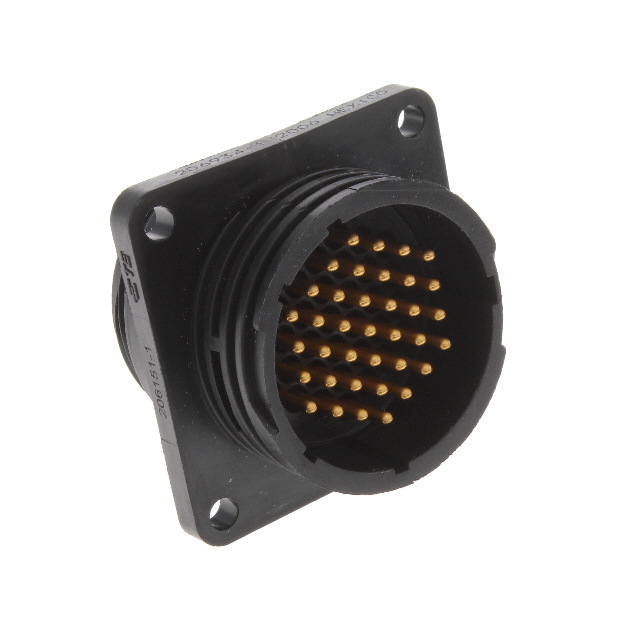

TE Connectivity Raychem Cable Protection 206934-1	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold	250 VAC	Black			Flange	37	Plastic	105 ░C	-55 °C	23	37	Unshielded
TE Connectivity Raychem Cable Protection 1-206934-1	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold PdNi +Gold	250 VAC	Black	30 Áin	0.76 Ám	Flange	37	Plastic	105 ░C	-55 °C	23	37
TE Connectivity Raychem Cable Protection 3-206934-1		Male Pins Receptacle		Solder			Gold						37				23	37
TE Connectivity Raychem Cable Protection 1-206934-8	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold	250 VAC	Black	30 Áin	0.76 Ám	Flange	37	Plastic	105 ░C	-55 °C	23	37

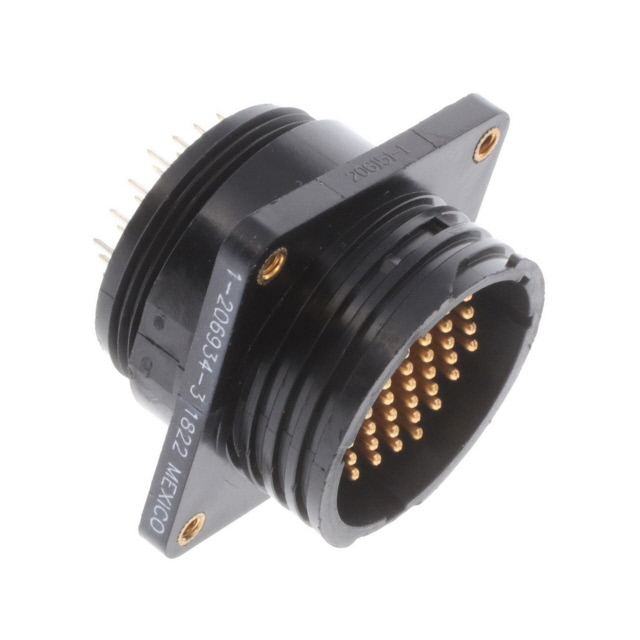

TE Connectivity Raychem Cable Protection 1-206934-3	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold	250 VAC	Black			Flange	37	Plastic	105 ░C	-55 °C	23	37	Unshielded
TE Connectivity Raychem Cable Protection 206934-5	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold	250 VAC	Black	30 Áin	0.76 Ám	Flange	37	Plastic	105 ░C	-55 °C	23	37
TE Connectivity Raychem Cable Protection 206934-7	Panel Mount Through Hole	Male Pins Receptacle	Brass	Solder	UL94 V-0	A	Gold	250 VAC	Black	30 Áin	0.76 Ám	Flange	37	Plastic	105 ░C	-55 °C	23	37
TE Connectivity Raychem Cable Protection 2-206934-7
