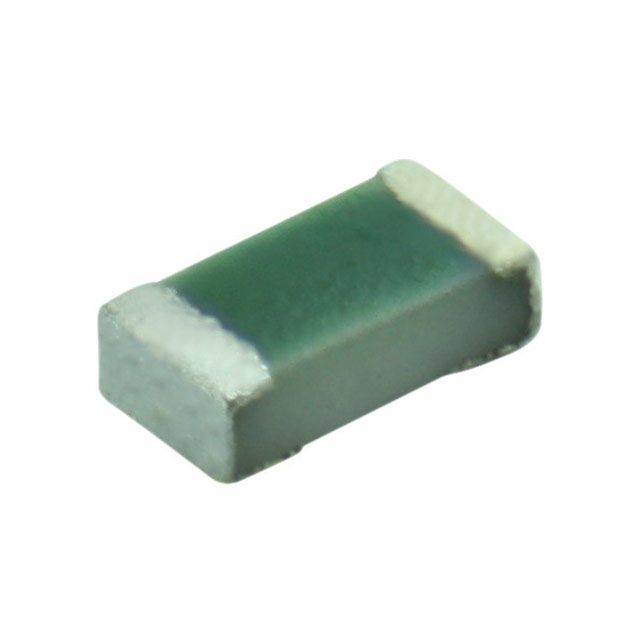

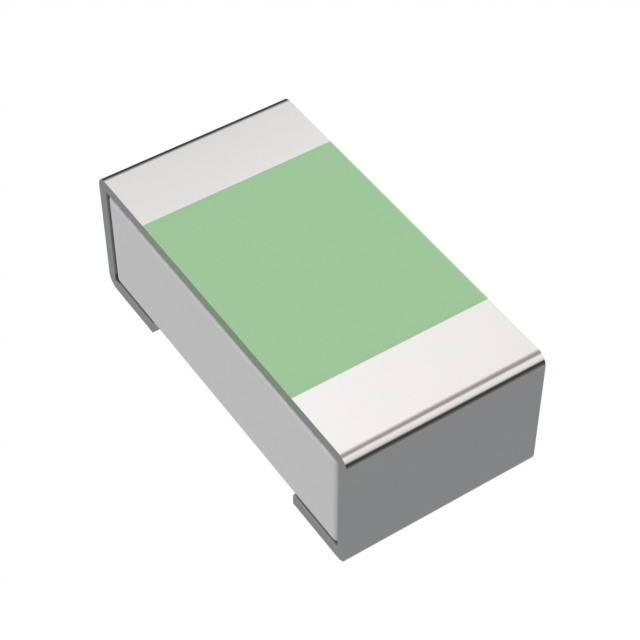

TNPW0402 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

Catalog

RES 2K OHM 0.1% 0.13W 0402

...

Part	Tolerance	Number of Terminations	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Supplier Device Package	Features	Package / Case	Resistance	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Power (Watts)
Vishay General Semiconductor - Diodes Division TNPW04022K00BEED	0.1 %	2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	2 kOhms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW040239R0DEED		2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	39 Ohms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW0402105RBEED	0.1 %	2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	105 Ohms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW04024K42DEED		2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	4.42 kOhms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW04021K74BETD	0.1 %	2	Thin Film	-55 °C	125 °C	25 ppm/°C	0402	Military	0402 (1005 Metric)		0.063 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm		0.0625 W
Vishay General Semiconductor - Diodes Division TNPW040212K0BYED	0.1 %	2	Thin Film	-55 °C	347 °F	10 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	12 kOhms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW040222R0FEED	1 %	2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	22 Ohms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW0402180RBEED	0.1 %	2	Thin Film	-55 °C	347 °F	25 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	180 Ohms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW040232K4BHED	0.1 %	2	Thin Film	-55 °C	347 °F	50 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	32.4 kOhms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
Vishay General Semiconductor - Diodes Division TNPW040234K0BHED	0.1 %	2	Thin Film	-55 °C	347 °F	50 ppm/°C	0402	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0402 (1005 Metric)	34 kOhms	0.13 W	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm	AEC-Q200
