829558 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

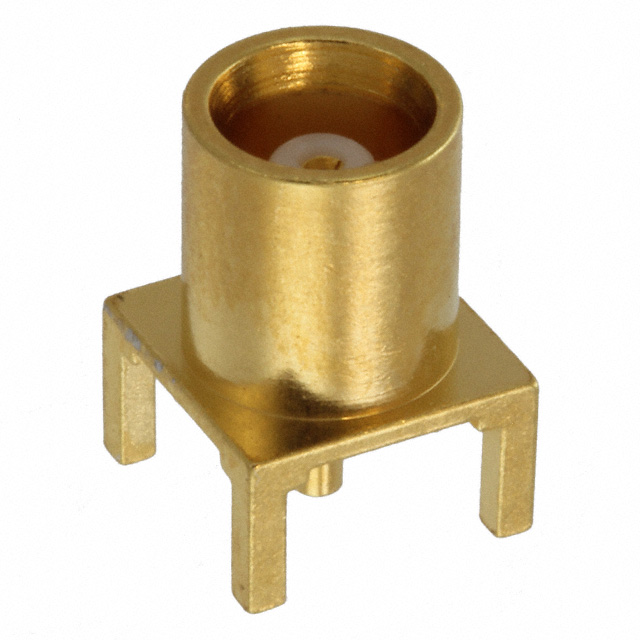

CONN MCX JACK STR 50 OHM PCB
| Part | Insertion Loss | Dielectric Material | Center Contact Plating | Body Material | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Connector Type | Center Contact Material | Number of Ports | Shield Termination | Contact Termination | Frequency - Max [Max] | Fastening Type | Connector Style | Impedance | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.1 dB | Polytetrafluoroethylene (PTFE) | Gold | Copper Alloy | 335 V | Gold | -65 ░C | 165 °C | 500 | Female Socket Jack | Beryllium Copper | 1 | Solder | Solder | 6000 MHz | Snap-On | MCX | 50 Ohms | Through Hole | Gold |
 TE Connectivity AMP Connectors | 0.1 dB | Polytetrafluoroethylene (PTFE) | Gold | Copper Alloy | 335 V | Gold | -65 ░C | 165 °C | 500 | Female Socket Jack | Beryllium Copper | 1 | Solder | Solder | 6000 MHz | Snap-On | MCX | 50 Ohms | Through Hole | Gold |
