06FMN-BM Series

Catalog

CONN FFC VERT 6POS 1MM SMD

Part	Housing Color	Current Rating (Amps)	Termination	FFC, FCB Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Voltage Rating	Mounting Type	Material Flammability Rating	Contact Material	Connector/Contact Type	Features	Pitch	Pitch	Number of Positions	Flat Flex Type	Cable End Type
JST Sales America Inc. 06FMN-BMT-A-TF	Black	0.5 A	Solder	0.3 mm	Tin	5.1 mm	0.201 in	85 °C	-25 °C	Nylon 6T Polyamide (PA6T)	50 V	Surface Mount	UL94 V-0	Phosphor Bronze	Contacts Vertical - 1 Sided	Low Insertion Force (LIF)	1 mm	0.039 in	6	FFC	Straight

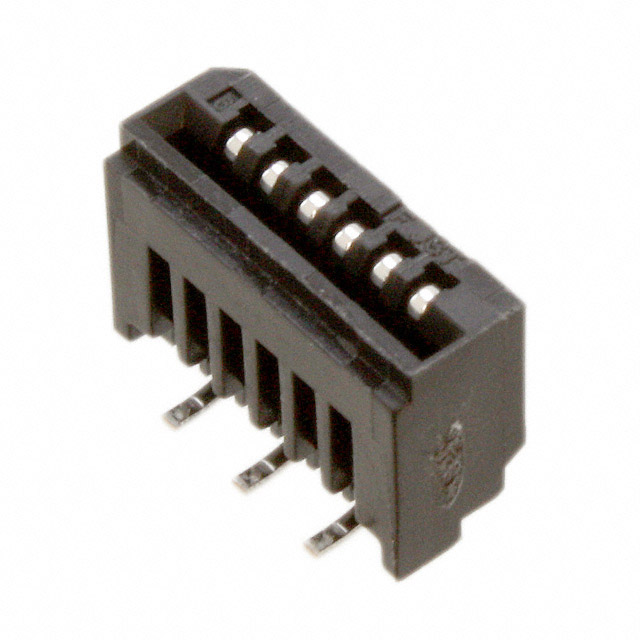

JST Sales America Inc. 06FMN-BMTTN-A-TF	Black	0.5 A	Solder	0.3 mm	Tin	5.1 mm	0.201 in	85 °C	-25 °C	Nylon 6T Polyamide (PA6T)	50 V	Surface Mount	UL94 V-0	Phosphor Bronze	Contacts Vertical - 1 Sided	Low Insertion Force (LIF)	1 mm	0.039 in	6	FFC	Straight
