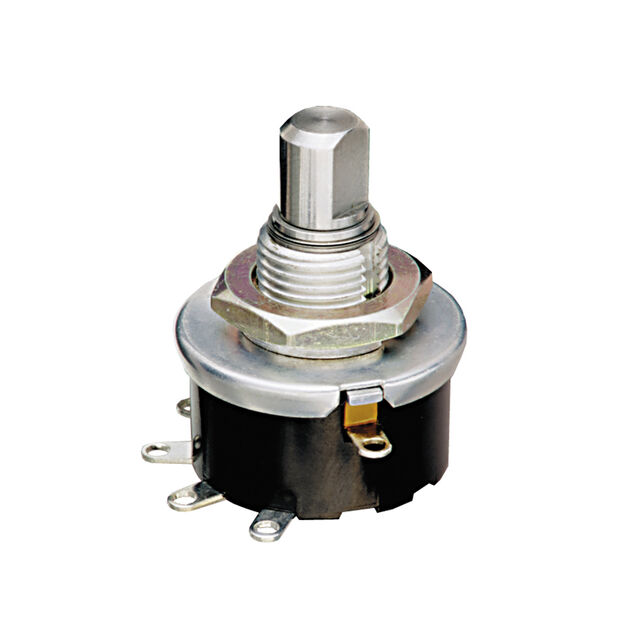

05001 Series
Manufacturer: Grayhill Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH ROTARY 5POS 1A 115V
| Part | Voltage Rating - DC | Contact Material | Voltage Rating - AC | Actuator Diameter | Actuator Type | Circuit per Deck | Index Stops | Number of Poles per Deck | Current Rating | Number of Positions | Number of Decks | Contact Timing | Termination Style | Mounting Type | Angle of Throw | Depth Behind Panel | Contact Finish | Actuator Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SP5T | Fixed | 1 | 1 A | 5 | 1 | Non-Shorting (BBM) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SP4T | Fixed | 1 | 1 A | 4 | 1 | Shorting (MBB) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SPDT | Fixed | 1 | 1 A | 2 | 1 | Non-Shorting (BBM) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SP7T | Fixed | 1 | 1 A | 7 | 1 | Shorting (MBB) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SP8T | Fixed | 1 | 1 A | 8 | 1 | Non-Shorting (BBM) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
 Grayhill Inc. | 28 V | Phosphor Bronze | 115 V | 6.35 mm | Flatted Flatted (6.35mm Dia) | SP3T | Fixed | 1 | 1 A | 3 | 1 | Non-Shorting (BBM) | Solder Lug | Panel Mount | 36 ° | 12.45 mm | Silver | 7.92 mm |
