5592101 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL RED DIFF SNAP-IN 18"LD

Part	Millicandela Rating	Wavelength - Peak	Viewing Angle	Lens Color	Lamp Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Voltage	Current	Lens Transparency	Type	Lens Size	Lens Size	Panel Cutout Shape	Lens Style	Termination Style	Termination Style	Termination Style
DIALIGHT 5592101834F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top

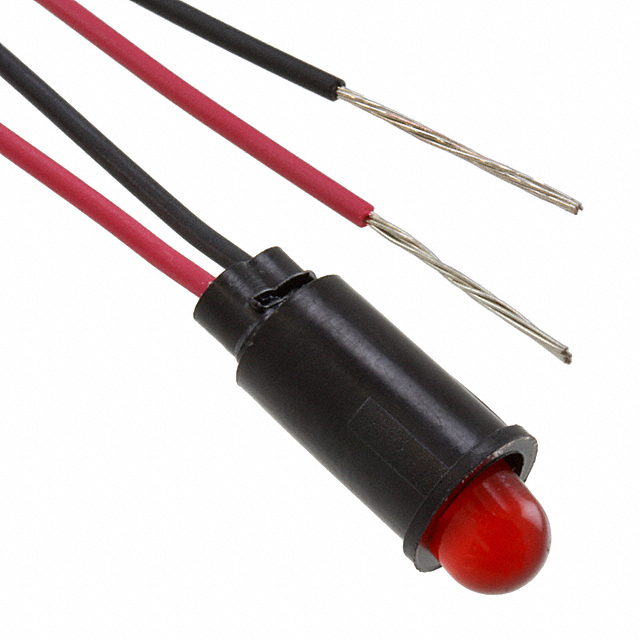

DIALIGHT 5592101027F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top	Wire Leads	14 in	355.6 mm
DIALIGHT 5592101841F
DIALIGHT 5592101831F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top

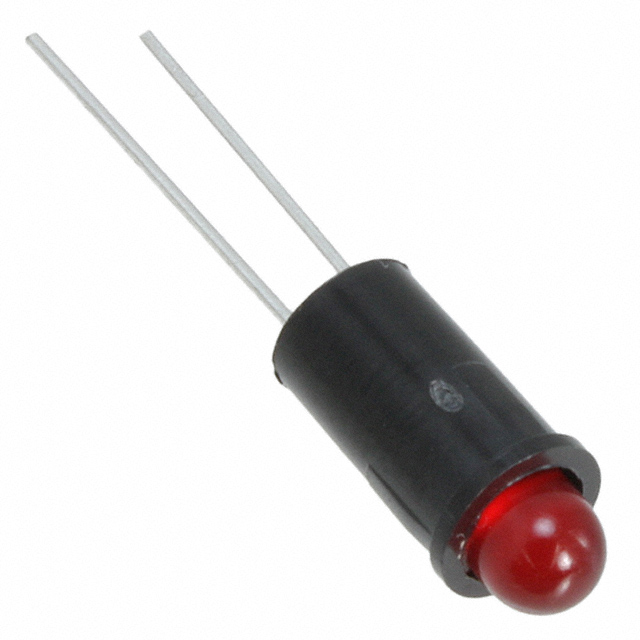

DIALIGHT 5592101001F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top	PC Pin
DIALIGHT 5592101833F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top

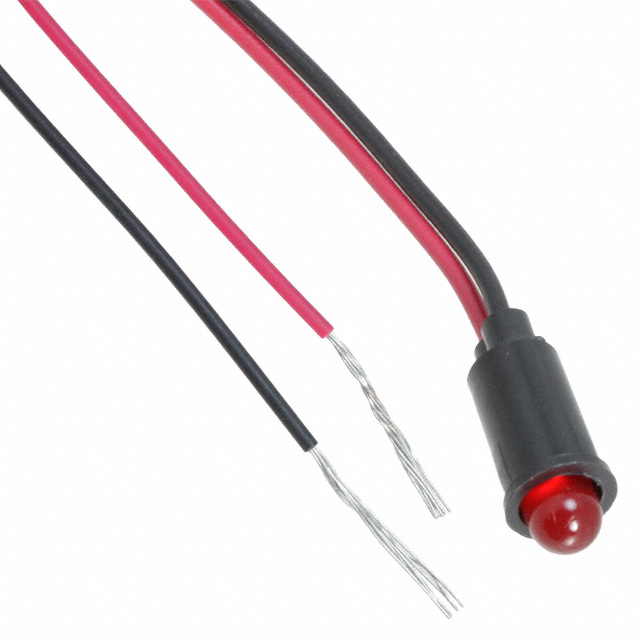

DIALIGHT 5592101003F	6.3 mcd	650 nm	50 °	Red	Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top

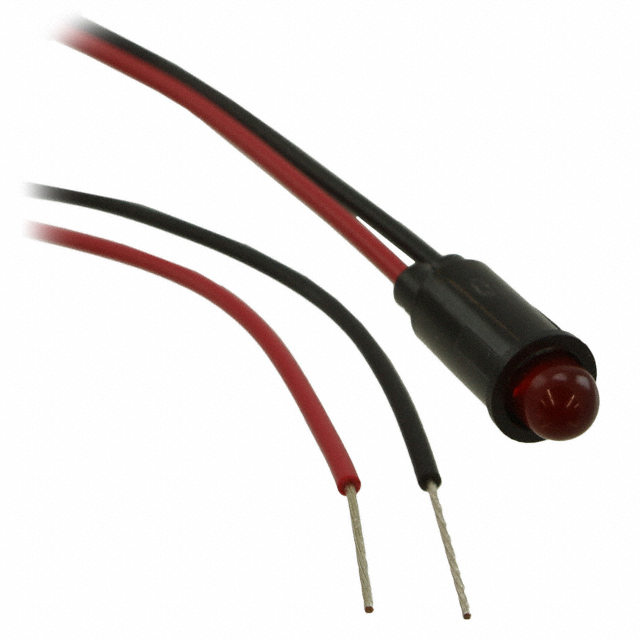

DIALIGHT 5592101007F	6.3 mcd	650 nm	50 °		Red	6.35 mm	0.25 in	2.2 V	20 mA	Diffused	LED	5 mm	T-1 3/4	Round	Round with Domed Top	Wire Leads	14 in	355.6 mm
