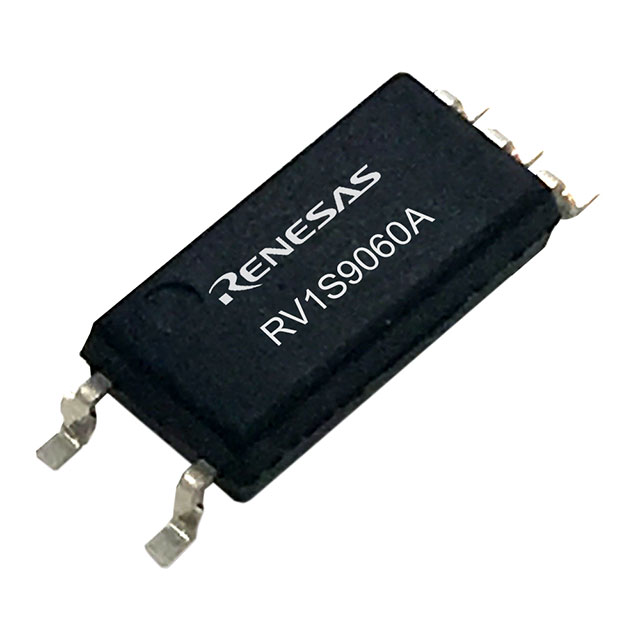

RV1S9060A Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
HIGH CMR, 15MBPS CMOS OUTPUT, LOW FORWARD CURRENT (IF) 3.3V/5V OPERATION, 5-PIN WITH 8MM CREEPAGE DISTANCE PACKAGE LSO5 PHOTOCOUPLER
| Part | Package / Case [y] | Package / Case | Package / Case [y] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Number of Channels [custom] | Data Rate | Propagation Delay tpLH / tpHL (Max) [custom] | Propagation Delay tpLH / tpHL (Max) [custom] | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Common Mode Transient Immunity (Min) [Min] | Voltage - Forward (Vf) (Typ) | Mounting Type | Supplier Device Package | Current - Output / Channel | Output Type | Current - DC Forward (If) (Max) [Max] | Input Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 7.5 mm | 5 Leads 6-SOIC | 0.295 in | 5 ns | 5 ns | 1 | 15 Mbps | 60 ns | 60 ns | 1 | 0 | 125 °C | -40 C | 6 V | 50 kV/çs | 1.55 V | Surface Mount | 5-LSO | 10 mA | CMOS | ||||
Renesas Electronics Corporation | 7.5 mm | 5 Leads 6-SOIC | 0.295 in | 5 ns | 5 ns | 1 | 15 Mbps | 60 ns | 60 ns | 1 | 0 | 125 °C | -40 C | 50 kV/çs | 1.55 V | Surface Mount | 5-LSOP | 10 mA | Push-Pull Totem Pole | 20 mA | DC | 5.5 V | 2.7 V |
